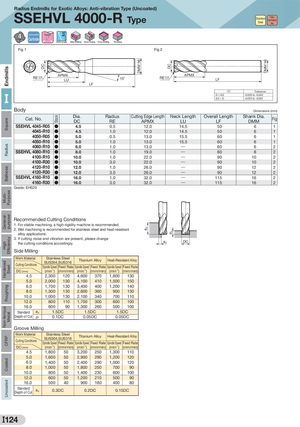

EndmillsSquareRadiusBallnoseMulti-PurposeGeneral-purposeHighEfficiencyHardene dSteelRoughingNon-ferrousMetalCFRPCoatedUncoated DC Stock DMM h6 ap DCap DMM h6 Radius Endmills for Exotic Alloys: Anti-vibration Type (Uncoated) SSEHVL 4000-R Type Stainless Ti Alloy /Heat ResistantSteelAlloy Uncoated Corner Flutes Carbide Helix Angle Side Milling Groove Finishing Face Milling Profiling Fig 1 Fig 2 RE+0.02 -0.01 APMX LU APMX15˚RE+0.02-0.01LF LF DC Tolerance I D ≤ 6.0 -0.028 to -0.0436.0 < D-0.033 to -0.052 Body Dimensions (mm) Cat. No. Dia.DC RadiusRE Cutting Edge Length Neck Length Overall LengthAPMXLULF Shank Dia.DMM Fig SSEHVL 4045-R05 ● 4.5 0.5 12.0 14.5 50 6 1 SSEHVL 4045-R10 ● 4.5 1.0 12.0 14.5 50 6 1 SSEHVL 4050-R05 ● 5.0 0.5 13.0 15.5 60 6 1 SSEHVL 4050-R10 ● 5.0 1.0 13.0 15.5 60 6 1 SSEHVL 4060-R10 ● 6.0 1.0 13.0 ― 60 6 2 SSEHVL 4080-R10 ● 8.0 1.0 19.0 ― 80 8 2 SSEHVL 4100-R10 ● 10.0 1.0 22.0 ― 90 10 2 SSEHVL 4100-R30 ● 10.0 3.0 22.0 ― 90 10 2 SSEHVL 4120-R10 ● 12.0 1.0 26.0 ― 90 12 2 SSEHVL 4120-R30 ● 12.0 3.0 26.0 ― 90 12 2 SSEHVL 4160-R10 ● 16.0 1.0 32.0 ― 115 16 2 SSEHVL 4160-R30 ● 16.0 3.0 32.0 ― 115 16 2 Grade: EH520 Recommended Cutting Conditions 1. For stable machining, a high-rigidity machine is recommended. 2. Wet machining is recommended for stainless steel and heat-resistant alloy applications. 3. ‌If cutting noise and vibration are present, please change the cutting conditions accordingly. ae DC Side Milling Work MaterialCutting Conditions Stainless SteelSUS304,SUS316Titanium Alloy Heat-Resistant AlloySpindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate DC (mm) (min-1) (mm/min) (min-1) (mm/min) (min-1) (mm/min) 4.5 2,300 120 4,600 370 1,600 130 5.0 2,000 130 4,100 410 1,500 150 6.0 1,700 130 3,400 400 1,200 140 8.0 1,300 130 2,600 360 900 130 10.0 1,000 130 2,100 340 700 110 12.0 800 110 1,700 300 600 100 16.0 600 90 1,300 260 500 100 Standard ap 1.5DC 1.5DC 1.5DC Depth of Cut pf 0.1DC 0.05DC 0.05DC Groove Milling Work MaterialCutting Conditions Stainless SteelSUS304,SUS316Titanium Alloy Heat-Resistant AlloySpindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate DC (mm) (min-1) (mm/min) (min-1) (mm/min) (min-1) (mm/min) 4.5 1,800 50 3,200 250 1,300 110 5.0 1,600 50 2,900 290 1,200 120 6.0 1,400 50 2,400 290 1,000 120 8.0 1,000 50 1,800 250 700 90 10.0 800 50 1,400 230 600 100 12.0 600 50 1,200 210 500 90 16.0 500 40 900 180 400 80 StandardDepth of Cutap 0.3DC 0.2DC 0.15DC I124
