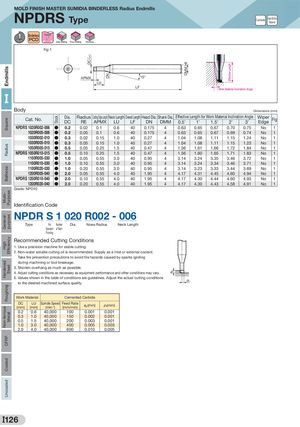

EndmillsSquareRadiusBallnoseMulti-PurposeGeneral-purposeHighEfficiencyHardene dSteelRoughingNon-ferrousMetalCFRPCoatedUncoated Stock 0 DC -0.001 DN ap DMM h6 Effective Length MOLD FINISH MASTER SUMIDIA BINDERLESS Radius Endmills NPDRS Type Carbide Hard BrittleMaterial Binderless Corner Flute Side Milling Face Milling Profiling Fig 1 APMX 15° LU LF Work Material Inclination Angle I Body Dimensions (mm) Cat. No. Dia.DC Radius CuttingEdgeLength Neck Length Overall Length Head Dia. Shank Dia. Effective Length for Work Material Inclination AngleREAPMXLULFDNDMM0.5°1°1.5°2°3°WiperEdgeFig NPDRS 1020R002-006 ● 0.2 0.02 0.1 0.6 40 0.175 4 0.63 0.65 0.67 0.70 0.75 No 1 NPDRS 1020R005-006 ● 0.2 0.05 0.1 0.6 40 0.175 4 0.63 0.65 0.67 0.69 0.74 No 1 NPDRS 1030R002-010 ● 0.3 0.02 0.15 1.0 40 0.27 4 1.04 1.08 1.11 1.15 1.24 No 1 NPDRS 1030R005-010 ● 0.3 0.05 0.15 1.0 40 0.27 4 1.04 1.08 1.11 1.15 1.23 No 1 NPDRS 1050R005-015 ● 0.5 0.05 0.25 1.5 40 0.47 4 1.56 1.61 1.66 1.72 1.84 No 1 NPDRS 1050R010-015 ● 0.5 0.10 0.25 1.5 40 0.47 4 1.56 1.60 1.65 1.71 1.83 No 1 NPDRS 1100R005-030 ● 1.0 0.05 0.55 3.0 40 0.95 4 3.14 3.24 3.35 3.46 3.72 No 1 NPDRS 1100R010-030 ● 1.0 0.10 0.55 3.0 40 0.95 4 3.14 3.24 3.34 3.46 3.71 No 1 NPDRS 1100R020-030 ● 1.0 0.20 0.55 3.0 40 0.95 4 3.14 3.23 3.33 3.44 3.69 No 1 NPDRS 1200R005-040 ● 2.0 0.05 0.55 4.0 40 1.95 4 4.17 4.31 4.45 4.60 4.94 No 1 NPDRS 1200R010-040 ● 2.0 0.10 0.55 4.0 40 1.95 4 4.17 4.30 4.44 4.60 4.93 No 1 NPDRS 1200R020-040 ● 2.0 0.20 0.55 4.0 40 1.95 4 4.17 4.30 4.43 4.58 4.91 No 1 Grade: NPD10 Identification Code NPDR S 1 020 R002 - 006 Type For Number Dia. Nose Radius Neck Length Standard of Teeth Finishing Recommended Cutting Conditions 1. Use a precision machine for stable cutting. 2. ‌N on-water soluble cutting oil is recommended. Supply as a mist or external coolant. Take fire prevention precautions to avoid fire hazards caused by sparks igniting during machining or tool breakage. 3. Shorten overhang as much as possible. 4. Adjust cutting conditions as necessary as equipment performance and other conditions may vary. 5. ‌V alues shown in the table of conditions are guidelines. Adjust the actual cutting conditions to the desired machined surface quality. pf Work Material Cemented Carbide DC LU Spindle Speed Feed Rate(mm)(mm)(min-1)(mm/min)ap(mm) pf(mm) 0.2 0.6 40,000 100 0.001 0.001 0.3 1.0 40,000 150 0.002 0.001 0.5 1.5 40,000 200 0.003 0.001 1.0 3.0 40,000 400 0.005 0.003 2.0 4.0 40,000 600 0.010 0.005 I126
