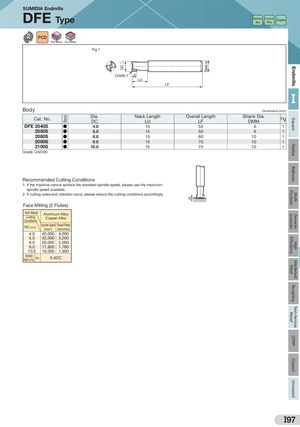

Stock DC -0.1 0 ap DMM h6 UncoatedCoatedCFRPNon-ferrousMetalRoughingHardenedSteelHighEfficiencyGeneral-purposeMulti-PurposeBallnoseRadiusSquareEndmills SUMIDIA Endmills DFE Type AluminumAlloy CopperAlloyGraphite PCD Flutes Side Milling Face Milling Fig 1 CHW0.1 4 LU LF I Body Dimensions (mm) Cat. No. Dia.DC Neck Length Overall LengthLULF Shank Dia.DMM Fig DFE 2040S ● 4.0 15 50 6 1 DFE 2050S ● 5.0 15 50 6 1 DFE 2080S ● 8.0 15 60 10 1 DFE 2090S ● 9.0 15 70 10 1 DFE 2100S ● 10.0 15 70 10 1 Grade: DA2200 Recommended Cutting Conditions 1. If the machine cannot achieve the standard spindle speed, please use the maximum spindle speed available. 2. If cutting noise and vibration occur, please reduce the cutting conditions accordingly. Face Milling (2 Flutes) Work Material Aluminum Alloy Cutting Copper Alloy Conditions DC (mm) Spindle Speed Feed Rate(min-1)(mm/min) 4.0 40,000 4,000 5.0 32,000 3,200 8.0 20,000 2,000 9.0 17,800 1,780 10.0 16,000 1,600 StandardDepth of Cutap0.4DC I97
