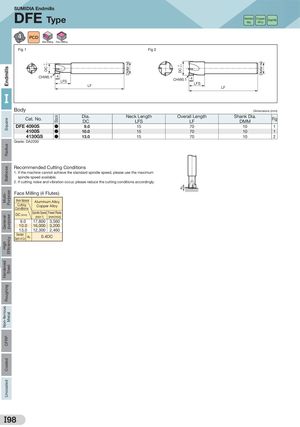

EndmillsSquareRadiusBallnoseMulti-PurposeGeneral-purposeHighEfficiencyHardene dSteelRoughingNon-ferrousMetalCFRPCoatedUncoated DC -0.1 0 Stock DMM h6 DC -0.1 0ap DMM h6 SUMIDIA Endmills DFE Type Aluminum Copper GraphiteAlloyAlloy PCD Flutes Side Milling Face Milling Fig 1 Fig 2 CHW0.1 4 LFS CHW0.1 4 LFS LF LF I Body Dimensions (mm) Cat. No. Dia.DC Neck Length Overall LengthLFSLF Shank Dia.DMM Fig DFE 4090S ● 9.0 15 70 10 1 DFE 4100S ● 10.0 15 70 10 1 DFE 4130GS ● 13.0 15 70 10 2 Grade: DA2200 Recommended Cutting Conditions 1. If the machine cannot achieve the standard spindle speed, please use the maximum spindle speed available. 2. If cutting noise and vibration occur, please reduce the cutting conditions accordingly. Face Milling (4 Flutes) Work Material Aluminum Alloy Cutting Copper Alloy Conditions DC (mm) Spindle Speed Feed Rate(min-1)(mm/min) 9.0 17,800 3,560 10.0 16,000 3,200 13.0 12,300 2,460 StandardDepth of Cutap0.4DC I98
