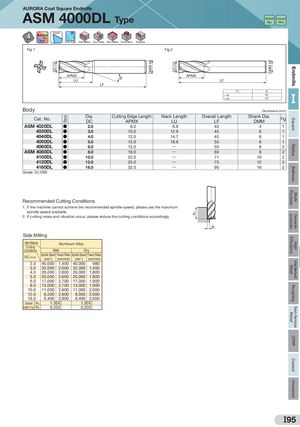

-0.040 DC -0.060 Stock DMM h6 -0.040 DC -0.060 ap DMM h6 UncoatedCoatedCFRPNon-ferrousMetalRoughingHardenedSteelHighEfficiencyGeneral-purposeMulti-PurposeBallnoseRadiusSquareEndmills AURORA Coat Square Endmills ASM 4000DL Type Aluminum CopperAlloyAlloy Aurora Corner Flutes Coat Helix Angle Side Milling Groove Finishing Face Milling Helical Milling Ramping Fig 1 Fig 2 APMX APMX LU θ LF LF DC θ < ø3≥ ø3 10°15° I Body Dimensions (mm) Cat. No. Dia.DC Cutting Edge Length Neck Length Overall LengthAPMXLULF Shank Dia.DMM Fig ASM 4020DL ● 2.0 6.0 6.8 40 4 1 ASM 4030DL ● 3.0 10.0 12.9 45 6 1 ASM 4040DL ● 4.0 12.0 14.7 45 6 1 ASM 4050DL ● 5.0 15.0 18.6 50 6 1 ASM 4060DL ● 6.0 15.0 ― 50 6 2 ASM 4080DL ● 8.0 18.0 ― 60 8 2 ASM 4100DL ● 10.0 22.0 ― 71 10 2 ASM 4120DL ● 12.0 25.0 ― 75 12 2 ASM 4160DL ● 16.0 32.0 ― 90 16 2 Grade: DL1000 Recommended Cutting Conditions 1. If the machine cannot achieve the recommended spindle speed, please use the maximum spindle speed available. 2. If cutting noise and vibration occur, please reduce the cutting conditions accordingly. ae Side Milling Work Material Aluminum Alloy Cutting Conditions Wet Dry DC (mm) Spindle Speed Feed Rate Spindle Speed Feed Rate(min-1)(mm/min)(min-1)(mm/min) 2.0 40,000 1,400 40,000 980 3.0 32,000 2,000 32,000 1,400 4.0 26,000 2,600 26,000 1,800 5.0 20,000 2,600 20,000 1,800 6.0 17,000 2,700 17,000 1,900 8.0 13,000 2,700 13,000 1,900 10.0 11,000 2,800 11,000 2,000 12.0 8,500 2,800 8,500 2,000 16.0 6,400 2,800 6,400 2,000 Standard ap 1.5DC 1.5DC Depth of Cut ae 0.2DC 0.2DC I95
