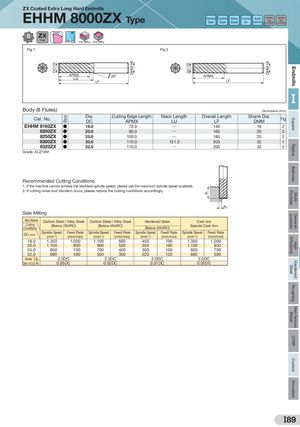

-0.030 DC -0.060 Stock DMM h6 -0.030 DC -0.060 ap DMM h6 UncoatedCoatedCFRPNon-ferrousMetalRoughingHardenedSteelHighEfficiencyGeneral-purposeMulti-PurposeBallnoseRadiusSquareEndmills ZX Coated Extra Long Hard Endmills EHHM 8000ZX Type General CarbonSteelSteelAlloySteelPre-hardenedSteelTemperedSteel/Die SteelHardenedSteel45 to 55HRCHardenedSteel55 to 60HRC Corner Flutes Coat Helix Angle Side Milling Face Milling Fig 1 Fig 2 APMXLU 20°LF APMX LF I Body (8 Flutes) Dimensions (mm) Cat. No. Dia.DC Cutting Edge Length Neck Length Overall LengthAPMXLULF Shank Dia.DMM Fig EHHM 8160ZX ● 16.0 70.0 ― 140 16 2 EHHM 8200ZX ● 20.0 85.0 ― 165 20 2 EHHM 8250ZX ● 25.0 100.0 ― 185 25 2 EHHM 8300ZX ● 30.0 110.0 121.5 205 32 1 EHHM 8320ZX ● 32.0 110.0 ― 205 32 2 Grade: ACZ10M Recommended Cutting Conditions 1. If the machine cannot achieve the standard spindle speed, please use the maximum spindle speed available. 2. If cutting noise and vibration occur, please reduce the cutting conditions accordingly. ae Side Milling Work Material Carbon Steel / Alloy Steel Carbon Steel / Alloy Steel Hardened Steel Cast Iron Cutting (Below 25HRC)Conditions (Below 45HRC) (Below 65HRC) Special Cast Iron DC (mm) Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate(min-1)(mm/min)(min-1)(mm/min)(min-1)(mm/min)(min-1)(mm/min) 16.0 1,350 1,000 1,100 600 450 190 1,350 1,000 20.0 1,100 850 900 520 350 160 1,100 850 25.0 850 700 700 420 300 150 850 700 32.0 680 580 550 350 220 120 680 580 Standard ap 2.0DC 2.0DC 2.0DC 2.0DC Depth of Cut ae 0.05DC 0.02DC 0.01DC 0.05DC I89
