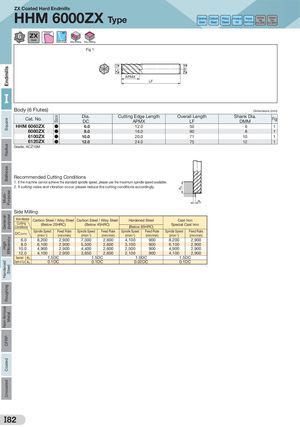

EndmillsSquareRadiusBallnoseMulti-PurposeGeneral-purposeHighEfficiencyHardene dSteelRoughingNon-ferrousMetalCFRPCoatedUncoated Stock -0.030 DC -0.060 ap DMM h6 ZX Coated Hard Endmills HHM 6000ZX Type General CarbonSteelSteelAlloySteelPre-hardenedSteelTemperedSteel/Die SteelHardenedSteel45 to 55HRCHardenedSteel55 to 60HRC Corner Flutes Coat Helix Angle Side Milling Face Milling Fig 1 APMX LF I Body (6 Flutes) Dimensions (mm) Cat. No. Dia.DC Cutting Edge Length Overall LengthAPMXLF Shank Dia.DMM Fig HHM 6060ZX ● 6.0 12.0 50 6 1 HHM 6080ZX ● 8.0 16.0 60 8 1 HHM 6100ZX ● 10.0 20.0 71 10 1 HHM 6120ZX ● 12.0 24.0 75 12 1 Grade: ACZ10M Recommended Cutting Conditions 1. If the machine cannot achieve the standard spindle speed, please use the maximum spindle speed available. 2. If cutting noise and vibration occur, please reduce the cutting conditions accordingly. ae Side Milling Work Material Carbon Steel / Alloy Steel Carbon Steel / Alloy Steel Hardened Steel Cast Iron Cutting (Below 25HRC)Conditions (Below 45HRC) (Below 65HRC) Special Cast Iron DC (mm) Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate(min-1)(mm/min)(min-1)(mm/min)(min-1)(mm/min)(min-1)(mm/min) 6.0 8,200 2,900 7,300 2,600 4,100 900 8,200 2,900 8.0 6,100 2,900 5,500 2,600 3,100 900 6,100 2,900 10.0 4,900 2,900 4,400 2,600 2,500 900 4,900 2,900 12.0 4,100 2,900 3,650 2,600 2,100 900 4,100 2,900 Standard ap 1.5DC 1.5DC 1.0DC 1.5DC Depth of Cut ae 0.1DC 0.1DC 0.02DC 0.1DC I82
