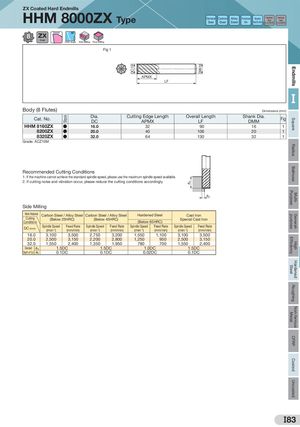

Stock -0.030 DC -0.060 ap DMM h6 UncoatedCoatedCFRPNon-ferrousMetalRoughingHardenedSteelHighEfficiencyGeneral-purposeMulti-PurposeBallnoseRadiusSquareEndmills ZX Coated Hard Endmills HHM 8000ZX Type General CarbonSteelSteelAlloySteelPre-hardenedSteelTemperedSteel/Die SteelHardenedSteel45 to 55HRCHardenedSteel55 to 60HRC Corner Flutes Coat Helix Angle Side Milling Face Milling Fig 1 APMX LF I Body (8 Flutes) Dimensions (mm) Cat. No. Dia.DC Cutting Edge Length Overall LengthAPMXLF Shank Dia.DMM Fig HHM 8160ZX ● 16.0 32 90 16 1 HHM 8200ZX ● 20.0 40 106 20 1 HHM 8320ZX ● 32.0 64 130 32 1 Grade: ACZ10M Recommended Cutting Conditions 1. If the machine cannot achieve the standard spindle speed, please use the maximum spindle speed available. 2. If cutting noise and vibration occur, please reduce the cutting conditions accordingly. ae Side Milling Work Material Carbon Steel / Alloy Steel Carbon Steel / Alloy Steel Hardened Steel Cast Iron Cutting (Below 25HRC)Conditions (Below 45HRC) (Below 65HRC) Special Cast Iron DC (mm) Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate(min-1)(mm/min)(min-1)(mm/min)(min-1)(mm/min)(min-1)(mm/min) 16.0 3,100 3,500 2,750 3,200 1,550 1,100 3,100 3,500 20.0 2,500 3,150 2,200 2,800 1,250 950 2,500 3,150 32.0 1,550 2,400 1,350 1,950 780 700 1,550 2,400 Standard ap 1.5DC 1.5DC 1.0DC 1.5DC Depth of Cut ae 0.1DC 0.1DC 0.02DC 0.1DC I83
