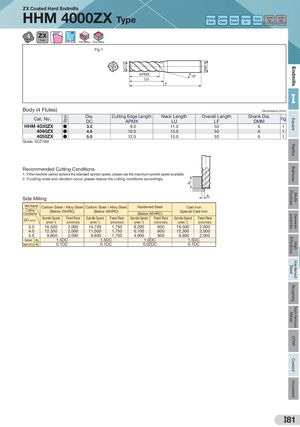

Stock -0.030 DC -0.060 ap DMM h6 UncoatedCoatedCFRPNon-ferrousMetalRoughingHardenedSteelHighEfficiencyGeneral-purposeMulti-PurposeBallnoseRadiusSquareEndmills ZX Coated Hard Endmills HHM 4000ZX Type General CarbonSteelSteelAlloySteelPre-hardenedSteelTemperedSteel/Die SteelHardenedSteel45 to 55HRCHardenedSteel55 to 60HRC Corner Flutes Coat Helix Angle Side Milling Face Milling Fig 1 APMX 15˚ LU LF I Body (4 Flutes) Dimensions (mm) Cat. No. Dia.DC Cutting Edge Length Neck Length Overall LengthAPMXLULF Shank Dia.DMM Fig HHM 4030ZX ● 3.0 8.0 11.0 50 6 1 HHM 4040ZX ● 4.0 10.0 13.0 50 6 1 HHM 4050ZX ● 5.0 12.0 15.0 50 6 1 Grade: ACZ10M Recommended Cutting Conditions 1. If the machine cannot achieve the standard spindle speed, please use the maximum spindle speed available. 2. If cutting noise and vibration occur, please reduce the cutting conditions accordingly. Side Milling ae Work Material Carbon Steel / Alloy Steel Carbon Steel / Alloy Steel Hardened Steel Cast Iron CuttingConditions (Below 25HRC) (Below 45HRC) (Below 65HRC) Special Cast Iron DC (mm) Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate(min-1)(mm/min)(min-1)(mm/min)(min-1)(mm/min)(min-1)(mm/min) 3.0 16,500 2,000 14,700 1,750 8,200 600 16,500 2,000 4.0 12,300 2,000 11,000 1,750 6,100 600 12,300 2,000 5.0 9,800 2,000 8,800 1,750 4,900 600 9,800 2,000 Standard ap 1.5DC 1.5DC 1.0DC 1.5DC Depth of Cut ae 0.1DC 0.1DC 0.02DC 0.1DC I81
