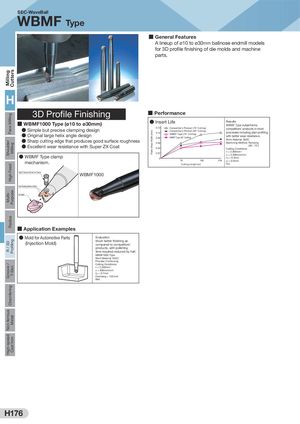

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron Flank Wear Width (mm) SEC-WaveBall WBMF Type ■ General Features A lineup of ø10 to ø30mm ballnose endmill models for 3D profile finishing of die molds and machine parts. H 3D Profile Finishing ■ Performance ■ WBMF1000 Type (ø10 to ø30mm) ● Insert Life ResultsWBMF Type outperforms ● Simple but precise clamping design● Original large helix angle design 0.12 Competitor's Product (75° Cutting) competitors' products in mostCompetitor's Product (45° Cutting)0.10WBMF Type (75° Cutting)0.08WBMF Type (45° Cutting)processes includingplan proling,with better wear resistance. ● Sharp cutting edge that produces good surface roughness 0.06 Work Material: S50CMachining Method: Ramping ● Excellent wear resistance with Super ZX Coat 0.04 (45°, 75°)Cutting Conditions n = 2,000min-1 ● WBMF Type clamp 0.02 vf = 2,000mm/min0ap = 0.3mm mechanism. 78 156 234 pf = 0.6mmCutting Length (m)Dry High Precision Screw for Clamp WBMF1000 Insert Mounting Reference Surface Insert ■ Application Examples ● Mold for Automotive Parts Evaluation (Injection Mold) Much better nishing ascompared to competitors' products, with polishing time required reduced by half. WBMF1000 Type Work Material: S55C Process: Contouring Cutting Conditions n = 2,500min-1 vf = 800mm/min ap = 0.7mm Overhang = 150 mm Wet H176
