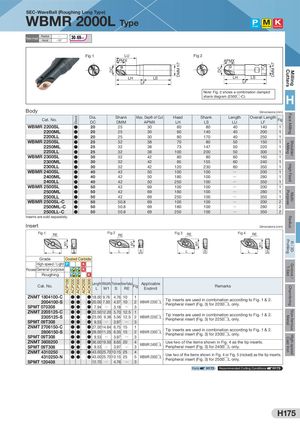

Общий каталог Sumitomo 2019 - 2020 - страница 619

W1ACP100 ACP200 Stock ACP300 ACK200 ACK300 DC W1 DMM h7 W1 DC W1 DMM h7 High-speedCast IronNon-ferrousMetalChamferingGroove /T-SlotR / 3DProfilingRadiusMulti-PurposeHigh FeedShoulderMillingFace MillingMillingCutters SEC-WaveBall (Roughing Long Type) WBMR 2000L Type Steel Stainless Steel Cast Iron Radial Q Rake Angle to Axial -10° Fig 1 LU Fig 2 APMX APMX LH LS LH LS LF LF Note: Fig. 2 shows a combination clamped shank diagram (2500□-C). H Body  Dimensions (mm) Cat. No. Dia.DC Shank Max. Depth of Cut HeadDMMAPMXLH ShankLS LengthLU Overall Length LF Fig WBMR 2200SL ● 20 25 30 60 80 40 140 1 WBMR 2200ML ● 20 25 30 60 140 40 200 1 WBMR 2200LL ● 20 25 30 80 170 40 250 1 WBMR 2250SL ● 25 32 38 70 80 50 150 1 WBMR 2250ML ● 25 32 38 73 147 50 220 1 WBMR 2250LL ● 25 32 38 100 200 50 300 1 WBMR 2300SL ● 30 32 42 80 80 60 160 1 WBMR 2300ML ● 30 32 42 85 155 60 240 1 WBMR 2300LL ● 30 32 42 120 230 60 350 1 WBMR 2400SL ● 40 42 50 100 100 Q 200 1 WBMR 2400ML ● 40 42 50 180 100 Q 280 1 WBMR 2400LL ● 40 42 50 250 100 Q 350 1 WBMR 2500SL ● 50 42 69 100 100 Q 200 1 WBMR 2500ML ● 50 42 69 180 100 Q 280 1 WBMR 2500LL ● 50 42 69 250 100 Q 350 1 WBMR 2500SL-C ● 50 50.8 69 100 100 Q 200 2 WBMR 2500ML-C ● 50 50.8 69 180 100 Q 280 2 WBMR 2500LL-C ● 50 50.8 69 250 100 Q 350 2 Inserts are sold separately. Insert  Dimensions (mm) Fig 1 RE Fig 2 RE Fig 3 RE Fig 4 RE L S L S L S L S Grade Coated Carbide High-speed / Light P K Process General-purpose K Roughing K Cat. No. Length L Width W1 Thickness S Nose Radius RE Fig ApplicableEndmill Remarks ZNMT 1804100-CZNMT 2004100-SSPMT 070308●●●●●● ● 18.00 9.76  4.76 10● 20.007.50 4.3710●  7.94Q 3.18Q123WBMR 2200□L ·· Tip inserts are used in combination according Peripheral insert (Fig. 3) for 2200□L only. to Fig. 1 & 2. ZNMT 2205125-CZNMT 2305125-SSPMT 09T308●●●●●● ● 22.50 12.20  5.70 12.5● 23.00  9.38  5.5612.5●  9.53Q 3.97Q123WBMR 2250□L ·· Tip inserts are used in combination according Peripheral insert (Fig. 3) for 2250□L only. to Fig. 1 & 2. ZNMT 2706150-CZNMT 2806150-SSPMT 09T308●●●●●● ● 27.00 14.64  6.75 15● 28.00 11.25  6.3515●  9.53Q 3.97Q12WBMR 2300□L ·· Tip inserts are used in combination according Peripheral insert (Fig. 3) for 2300□L only. to Fig. 1 & 2.3 ZNMT 3608200SPMT 09T308 ●●●● ● 36.00 19.50  8.65 20●  9.53Q 3.97Q43 WBMR 2400□L ·· Use two of the items shown in Fig. 4 as the Peripheral insert (Fig. 3) for 2400□L only. tip inserts. ZNMT 4310250ZNMT 4310250-NSPMT 120408●●●● ● 43.00 25.70 10.15 25● 43.00 25.70 10.152545 WBMR 2500□L ·· Use two of the items shown in Fig. 4 or Fig. 5 (nicked) Peripheral insert (Fig. 3) for 2500□L only. as the tip inserts.12.70Q 4.76Q3 Parts H173 Recommended Cutting Conditions H173 H175
