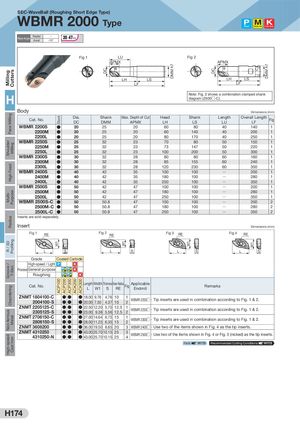

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron StockW1ACP100 ACP200 ACP300 ACK200 ACK300 DC W1 DMM h7 W1 DC W1 DMM h7 SEC-WaveBall (Roughing Short Edge Type) WBMR 2000 Type Steel Stainless Steel Cast Iron Radial Q Rake Angle Axial -10° Fig 1 LU Fig 2 APMX APMX LH LS LH LS LF LF Note: Fig. 2 shows a combination clamped shank H diagram (2500□-C). Body Dimensions (mm) Cat. No. Dia.DC Shank Max. Depth of Cut HeadDMMAPMXLH ShankLS LengthLU Overall Length LF Fig WBMR 2200S ● 20 25 20 60 80 40 140 1 WBMR 2200M ● 20 25 20 60 140 40 200 1 WBMR 2200L ● 20 25 20 80 170 40 250 1 WBMR 2250S ● 25 32 23 70 80 50 150 1 WBMR 2250M ● 25 32 23 73 147 50 220 1 WBMR 2250L ● 25 32 23 100 200 50 300 1 WBMR 2300S ● 30 32 28 80 80 60 160 1 WBMR 2300M ● 30 32 28 85 155 60 240 1 WBMR 2300L ● 30 32 28 120 230 60 350 1 WBMR 2400S ● 40 42 35 100 100 Q 200 1 WBMR 2400M ● 40 42 35 180 100 Q 280 1 WBMR 2400L ● 40 42 35 250 100 Q 350 1 WBMR 2500S ● 50 42 47 100 100 Q 200 1 WBMR 2500M ● 50 42 47 180 100 Q 280 1 WBMR 2500L ● 50 42 47 250 100 Q 350 1 WBMR 2500S-C ● 50 50.8 47 100 100 Q 200 2 WBMR 2500M-C ● 50 50.8 47 180 100 Q 280 2 WBMR 2500L-C ● 50 50.8 47 250 100 Q 350 2 Inserts are sold separately. Insert Dimensions (mm) Fig 1 RE Fig 2 RE Fig 3 RE Fig 4 RE L S L S L S L S Grade Coated Carbide High-speed / Light P K Process General-purpose K Roughing K Cat. No. Length Width Thickness Nose Radius L W1 S RE Fig Applicable Endmill Remarks ZNMT 1804100-CZNMT 2004100-S ●●●● ● 18.00 9.76 4.76 10● 20.00 7.504.371012WBMR 2200□ · Tip inserts are used in combination according to Fig. 1 & 2. ZNMT 2205125-CZNMT 2305125-S ●●●● ● 22.50 12.20 5.70 12.5● 23.009.385.5612.512WBMR 2250□ · Tip inserts are used in combination according to Fig. 1 & 2. ZNMT 2706150-CZNMT 2806150-S ●●●● ● 27.00 14.64 6.75 15● 28.00 11.256.351512WBMR 2300□ · Tip inserts are used in combination according to Fig. 1 & 2. ZNMT 3608200 ●● ● 36.00 19.50 8.65 20 3 WBMR 2400□ · Use two of the items shown in Fig. 4 as the tip inserts. ZNMT 4310250ZNMT 4310250-N ●●●● ● 43.00 25.70 10.15 25● 43.00 25.70 10.152534WBMR 2500□ · Use two of the items shown in Fig. 4 or Fig. 5 (nicked) as the tip inserts. Parts H173 Recommended Cutting Conditions H173 H174
