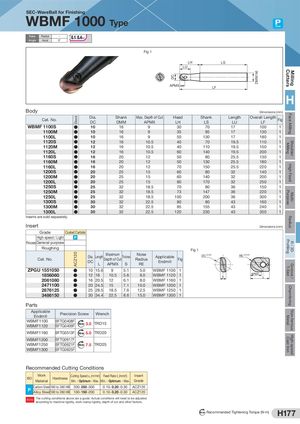

Общий каталог Sumitomo 2019 - 2020 - страница 621

StockACZ120 DC DMM h6 High-speedCast IronNon-ferrousMetalChamferingGroove /T-SlotR / 3DProfilingRadiusMulti-PurposeHigh FeedShoulderMillingFace MillingMillingCutters SEC-WaveBall for Finishing WBMF 1000 Type Steel Rake Radial Q to Angle Axial 0° Fig 1 LH LS LU APMX LF H Body  Dimensions (mm) Cat. No. Dia.DC Shank Max. Depth of Cut HeadDMMAPMXLH ShankLS LengthLU Overall Length LF Fig WBMF 1100S ● 10 16 9 30 70 17 100 1 WBMF 1100M ● 10 16 9 35 95 17 130 1 WBMF 1100L ● 10 16 9 50 130 17 180 1 WBMF 1120S ● 12 16 10.5 40 70 19.5 110 1 WBMF 1120M ● 12 16 10.5 40 110 19.5 150 1 WBMF 1120L ● 12 16 10.5 60 140 19.5 200 1 WBMF 1160S ● 16 20 12 50 80 25.5 130 1 WBMF 1160M ● 16 20 12 50 130 25.5 180 1 WBMF 1160L ● 16 20 12 70 150 25.5 220 1 WBMF 1200S ● 20 25 15 60 80 32 140 1 WBMF 1200M ● 20 25 15 60 140 32 200 1 WBMF 1200L ● 20 25 15 80 170 32 250 1 WBMF 1250S ● 25 32 18.5 70 80 36 150 1 WBMF 1250M ● 25 32 18.5 73 147 36 220 1 WBMF 1250L ● 25 32 18.5 100 200 36 300 1 WBMF 1300S ● 30 32 22.5 80 80 43 160 1 WBMF 1300M ● 30 32 22.5 85 155 43 240 1 WBMF 1300L ● 30 32 22.5 120 230 43 350 1 Inserts are sold separately. Insert  Dimensions (mm) Grade Coated Carbide High-speed / Light P Process General-purpose Roughing Fig 1 Cat. No. Dia. DC Length Maximum Depth of Cut Thickness L APMX S NoseRadiusRE ApplicableEndmillFig DC±0.02 RE±0.015 ZPGU 1551050 ● 10 15.6 9 5.1 5.0 WBMF 1100 1 ZPGU 1856060 ● 12 18 10.5 5.6 6.0 WBMF 1120 1 APMXS L ZPGU 2061080 ● 16 20.5 12 6.1 8.0 WBMF 1160 1 ZPGU 2471100 ● 20 24.5 15 7.1 10.0 WBMF 1200 1 ZPGU 2876125 ● 25 28.5 18.5 7.6 12.5 WBMF 1250 1 ZPGU 3486150 ● 30 34.4 22.5 8.6 15.0 WBMF 1300 1 Parts ApplicableEndmill Precision Screw Wrench WBMF1100WBMF1120 BFTG0408FBFTG0409F N m 3.0 TRD15 WBMF1160 BFTG0513F N m 5.0 TRD20 WBMF1200 BFTG0617F WBMF1250 BFTG0621F N m 7.5 TRD25 WBMF1300 BFTG0825F Recommended Cutting Conditions WorkISO Hardness Cutting Speed vc (m/min) Feed Rate fz (mm/t) Insert Material Min. - Optimum - Max. Min. - Optimum - Max. Grade P Carbon Steel 180 to 280 HBAlloy Steel 180 to 280 HB200- 250 -300100- 150 -2000.10- 0.20 -0.30 ACZ1200.10- 0.20 -0.30ACZ120 Note The cutting conditions above are a guide. Actual conditions will need to be adjusted according to machine rigidity, work clamp rigidity, depth of cut and other factors. N m Recommended Tightening Torque (N·m) H177
