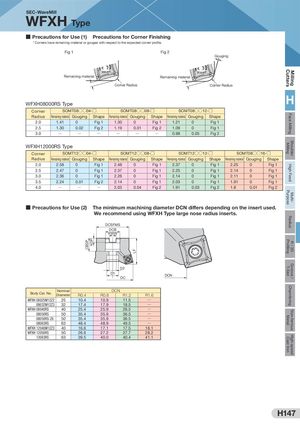

High-speedCast IronNon-ferrousMetalChamferingGroove /T-SlotR / 3DProfilingRadiusMulti-PurposeHigh FeedShoulderMillingFace MillingMillingCutters SEC-WaveMill WFXH Type ■ Precautions for Use (1) Precautions for Corner Finishing * Corners have remaining material or gouges with respect to the expected corner profile. Fig 1 Fig 2 Gouging Insert Insert Remaining material Remaining material Corner Radius Corner Radius WFXH08000RS Type H Corner SOMT08○○04-□ SOMT08○○08-□ SOMT08○○12-□ Radius Remaining material Gouging Shape Remaining material Gouging Shape Remaining material Gouging Shape 2.0 1.41 0 Fig 1 1.30 0 Fig 1 1.21 0 Fig 1 2.5 1.30 0.02 Fig 2 1.19 0.01 Fig 2 1.09 0 Fig 1 3.0 Q Q Q Q Q Q 0.98 0.05 Fig 2 WFXH12000RS Type Corner SOMT12○○04-□ SOMT12○○08-□ SOMT12○○12-□ SOMT08○○16-□ Radius Remaining material Gouging Shape Remaining material Gouging Shape Remaining material Gouging Shape Remaining material Gouging Shape 2.0 2.58 0 Fig 1 2.48 0 Fig 1 2.37 0 Fig 1 2.25 0 Fig 1 2.5 2.47 0 Fig 1 2.37 0 Fig 1 2.25 0 Fig 1 2.14 0 Fig 1 3.0 2.36 0 Fig 1 2.26 0 Fig 1 2.14 0 Fig 1 2.11 0 Fig 1 3.5 2.24 0.01 Fig 2 2.14 0 Fig 1 2.03 0 Fig 1 1.91 0 Fig 1 4.0 Q Q Q 2.03 0.04 Fig 2 1.91 0.03 Fig 2 1.8 0.01 Fig 2 ■ Precautions for Use (2) The minimum machining diameter DCN differs depending on the insert used. We recommend using WFXH Type large nose radius inserts. DCSFMS DCB KWW WFXH12-RS D2 D1 DCN DC Nominal DCN Body Cat. No. Diameter R0.4 R0.8 R1.2 R1.6 WFXH 08025M12Z2 25 10.4 10.9 11.5 Q 08032M12Z3 32 17.4 17.9 18.5 Q WFXH 08040RS 40 25.4 25.9 26.5 Q 08050RS 50 35.4 35.9 36.5 Q 08050RS-Z6 50 35.4 35.9 36.5 Q 08063RS 63 48.4 48.9 49.5 Q WFXH 12040M12Z3 40 16.6 17.1 17.5 18.1 WFXH 12050RS 50 26.6 27.2 27.7 28.2 12063RS 63 39.5 40.0 40.4 41.1 H147 CBDP KDP LF
