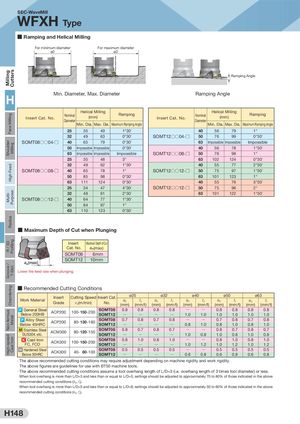

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron SEC-WaveMill WFXH Type ■ Ramping and Helical Milling For minimum diameter For maximum diameter øD øD Ramping Angle Min. Diameter, Max. Diameter Ramping Angle H Helical MillingInsert Cat. No.NominalDiameter(mm)Ramping Helical MillingInsert Cat. No.NominalDiameter(mm)Ramping Min. Dia. Max. Dia. Maximum Ramping Angle Min. Dia. Max. Dia. Maximum Ramping Angle 25 35 49 1°30' 40 56 79 1° 32 49 63 0°30' SOMT12○○04-□ 50 76 99 0°30' SOMT08○○04-□ 40 65 79 0°30' 63 Impossible Impossible Impossible 50 Impossible Impossible 0°30' 40 56 78 1°30' 63 Impossible Impossible Impossible SOMT12○○08-□ 50 76 98 1° 25 35 48 3° 63 102 124 0°30' 32 49 62 1°30' 40 55 77 2°30' SOMT08○○08-□ 40 65 78 1° SOMT12○○12-□ 50 75 97 1°30' 50 85 98 0°30' 63 101 123 1° 63 111 124 0°30' 40 55 76 3°30' 25 34 47 4°30' SOMT12○○12-□ 50 75 96 2° 32 48 61 2°30' 63 101 122 1°30' SOMT08○○12-□ 40 64 77 1°30' 50 84 97 1° 63 110 123 0°30' ■ Maximum Depth of Cut when Plunging Insert Maximum Depth of Cut Cat. No. ae(max) SOMT08 6mm SOMT12 10mm ae(max) Lower the feed rate when plunging. ■ Recommended Cutting Conditions Work Material InsertGradeCutting Speed Insert Cat.vc(m/min)No. ø25apfz(mm)(mm/t) ø32apfz(mm)(mm/t)ø40apfz(mm)(mm/t) ø50apfz(mm)(mm/t) ø63ap fz(mm)(mm/t) P General SteelBelow 200HBACP200100-150-200 SOMT08SOMT12 0.8Q 0.8Q 0.8Q 0.8Q Q1.0 Q1.0 0.81.0 0.81.0 0.81.0 0.81.0 P Alloy SteelBelow 45HRCACP20080-130-180 SOMT08SOMT12 0.7Q 0.8Q 0.7Q 0.8Q Q0.8 Q1.0 0.70.8 0.81.0 0.70.8 0.81.0 M Stainless SteelSUS304, etc.ACM30080-120-150 SOMT08SOMT12 0.8Q 0.7Q 0.8Q 0.7Q Q1.0 Q0.8 0.81.0 0.70.8 0.81.0 0.70.8 K Cast IronFC, FCDACK300 100-150-200 SOMT08SOMT12 0.8Q 1.0Q 0.8Q 1.0Q Q1.0 Q1.2 0.81.0 1.01.2 0.81.0 1.01.2 H Hardened SteelBelow 50HRCACK30040- 80-100 SOMT08SOMT12 0.5Q 0.5Q 0.5Q 0.5Q Q0.6 Q0.8 0.50.6 0.50.8 0.50.6 0.50.8 · The above recommended cutting conditions may require adjustment depending on machine rigidity and work rigidity. The above figures are guidelines for use with BT50 machine tools. · The above recommended cutting conditions assume a tool overhang length of L/D=3 (i.e. overhang length of 3 times tool diameter) or less. When tool overhang is more than L/D=3 and less than or equal to L/D=5, settings should be adjusted to approximately 70 to 80% of those indicated in the above recommended cutting conditions (ap, fz). When tool overhang is more than L/D=5 and less than or equal to L/D=8, settings should be adjusted to approximately 50 to 60% of those indicated in the above recommended cutting conditions (ap, fz). H148
