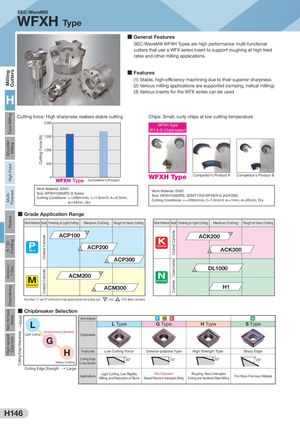

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron GoodCutting Edge Sharpness Cutting Force (N) Coated CarbideCoated Carbide Coated CarbideCoated CarbideCarbide SEC-WaveMill WFXH Type ■ General Features SEC-WaveMill WFXH Types are high performance multi-functional cutters that use a WFX series insert to support roughing at high feed rates and other milling applications. ■ Features (1) Stable, high-efficiency machining due to their superior sharpness (2) Various milling applications are supported (ramping, helical milling) (3) Various inserts for the WFX series can be used H Cutting force: High sharpness realises stable cutting Chips: Small, curly chips at low cutting temperature 2,000 WFXH Type (R1.6-G Chipbreaker) 1,500 1,000 500 0 WFXH Type Competitor's Product A Competitor's Product B WFXH Type Competitor's Product Work Material: S50C Tool: WFXH12063RS (5 flutes) Work Material: S50C Cutting Conditions: v c=200m/min, fz=1.0mm/t, ap=0.5mm,ae=44mm, Dry Tool: WFXH12063RS, SOMT120416PDER-G (ACP200)Cutting Conditions: v c=200m/min, fZ=1.0mm/t, ap=1mm, ae=35mm, Dry ■ Grade Application Range Work Material Grade Finishing to Light Cutting Medium Cutting Rough to Heavy Cutting Work Material Grade Finishing to Light Cutting Medium Cutting Rough to Heavy Cutting CACP100 CACK200 Steel P ACP200 Cast Iron P ACK300 P ACP300 P DL1000 C ACM200 Non-Ferrous Metal Stainless Steel P ACM300 H1 The letters "C" and "P" at the end of each grade indicate the coating type. C : CVD, P : PVD, Blank: Uncoated ■ Chipbreaker Selection Work Material P M K N ↑ L L Type G Type H Type S Type General-purpose (Standard) Light Cutting Chipbreaker G H Features Low Cutting Force General-purpose Type High Strength Type Sharp Edge Cutting Edge 20° 15° 10° 25° Heavy Cutting Cross Section Cutting Edge Strength → Large Applications Light Cutting, Low RigidityMilling and Reduction of BurrsMain ChipbreakerGeneral Purpose to Interrupted MillingRoughing, Heavy InterruptedCutting and Hardened Steel MillingFor Non-Ferrous Metals H146
