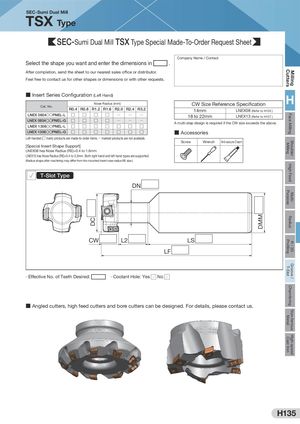

High-speedCast IronNon-ferrousMetalChamferingGroove /T-SlotR / 3DProfilingRadiusMulti-PurposeHigh FeedShoulderMillingFace MillingMillingCutters SEC-Sumi Dual Mill TSX Type SEC-Sumi Dual Mill TSX Type Special Made-To-Order Request Sheet Company Name / Contact Select the shape you want and enter the dimensions in . After completion, send the sheet to our nearest sales office or distributor. Feel free to contact us for other shapes or dimensions or with other requests. ■ Insert Series Configuration (Left Hand) Nose Radius (mm)Cat. No. CW Size Reference Specification H R0.4 R0.8 R1.2 R1.6 R2.0 R2.4 R3.2 14mm LNEX08 (Refer to H125 ) LNEX 0804SSPNEL-L Q Q Q 18 to 22mm LNEX13 (Refer to H127 ) LNEX 0804SSPNEL-G Q Q Q A multi-step design is required if the CW size exceeds the above. LNEX 1306SSPNEL-L LNEX 1306SSPNEL-G ■ Accessories Left-handed (□ mark) products are made-to-order items. Q marked products are not available. Screw Wrench Anti-seizure Cream [Special Insert Shape Support] LNEX08 has Nose Radius (RE)=0.4 to 1.6mm LNEX13 has Nose Radius (RE)=0.4 to 3.2mm. Both right hand and left hand types are supported. (Radius shape after machining may differ from the mounted insert nose radius RE size.) 另 T-Slot Type DN CW L2 LS LF · Effective No. of Teeth Desired: · Coolant Hole: Yes ✔ No ✔ ■ Angled cutters, high feed cutters and bore cutters can be designed. For details, please contact us. H135 DC DMM
