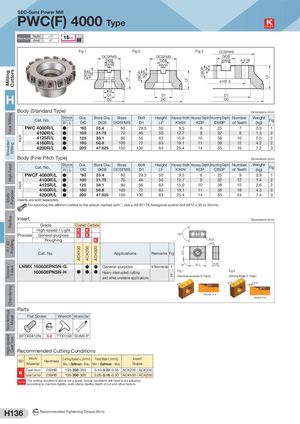

Общий каталог Sumitomo 2019 - 2020 - страница 580

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron InchInch ACK100 CBDPACK200 KDP ACK300 LF CBDP KDP 12.7 LF CBDP KDP LF SEC-Sumi Power Mill PWC(F) 4000 Type Cast Iron Radial –15° Rake Angle Axial –5° Fig 1 Fig 2 Fig 3 DCSFMS DCSFMS DCSFMS DCB DCB DCB KWW 4-ø18 KWW KWW ø101.6 13 H D1 D1 D1DCDCDC Body (Standard Type)  Dimensions (mm) Cat. No. Stock Dia. Bore Dia. Boss BoltRLDCDCBDCSFMSD1Height Keyway Width Keyway Depth Mounting Depth NumberLFKWWKDPCBDPof TeethWeight(kg) Fig PWC 4080R/L ● *80 25.4 60 29.5 50 9.5 6 25 7 0.9 1 PWC 4100R/L ● 100 31.75 70 46 50 12.7 8 32 8 1.3 2 PWC 4125R/L ● 125 38.1 80 56 63 15.9 10 38 10 2.5 2 PWC 4160R/L ● 160 50.8 100 72 63 19.1 11 38 12 4.2 2 PWC 4200R/L ● 200 47.625 150 130 63 25.4 14 35 16 7.2 3 Body (Fine Pitch Type)  Dimensions (mm) Cat. No. Stock Dia. Bore Dia. Boss BoltRLDCDCBDCSFMSD1Height Keyway Width Keyway Depth Mounting Depth NumberLFKWWKDPCBDPof TeethWeight(kg) Fig PWCF 4080R/L ● *80 25.4 60 29.5 50 9.5 6 25 9 0.9 1 PWCF 4100R/L ● 100 31.75 70 46 50 12.7 8 32 12 1.4 2 PWCF 4125R/L ● 125 38.1 80 56 63 15.9 10 38 15 2.6 2 PWCF 4160R/L ● 160 50.8 100 72 63 19.1 11 38 18 4.3 2 PWCF 4200R/L ● 200 47.625 150 130 63 25.4 14 35 24 7.4 3 Inserts are sold separately. For securing the ø80mm cutters to the arbors marked with *, use a JIS B1176 hexagonal socket bolt (M12 x 30 to 35mm). Insert  Dimensions (mm) Grade Coated Carbide High-speed / Light K K Process General-purpose K K 184 Roughing K R0.8 ø4.6 Cat. No. Applications Remarks Fig LNMX 160608PNSN-G ● ● General-purpose 1st Recommended 1 90˚ 16.1 6.29 LNMX 160608PNSN-H ● ● ● Heavy interrupted cutting Fig 1 Fig 2 and other unstable applications 2 (General-purpose G Type) (Strong Edge H Type) a a b 0.2mm20°b15° Section a-a Section b-b Parts Flat Screw Wrench Anti-seizure Cream Nm BFTX0412N 3.0 TTX15W SUMI-P Recommended Cutting Conditions WorkISOMaterial Hardness Cutting Speed vc (m/min) Feed Rate fz (mm/t)Min. - Optimum - Max.Min. - Optimum - Max.InsertGrade K Cast IronDuctile Cast Iron250HB250HB150- 250 -350100- 200 -3000.10- 0.23 -0.35 ACK200 / ACK3000.05- 0.18 -0.30ACK100 / ACK200 Note The cutting conditions above are a guide. Actual conditions will need to be adjusted according to machine rigidity, work clamp rigidity, depth of cut and other factors. H136 N m Recommended Tightening Torque (N·m)
