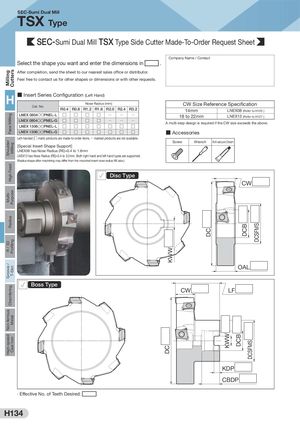

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron KWWDC DC KWW DCB DCB DCSFMS DCSFMS SEC-Sumi Dual Mill TSX Type SEC-Sumi Dual Mill TSX Type Side Cutter Made-To-Order Request Sheet Company Name / Contact Select the shape you want and enter the dimensions in . After completion, send the sheet to our nearest sales office or distributor. Feel free to contact us for other shapes or dimensions or with other requests. H ■ Insert Series Configuration (Left Hand) Nose Radius (mm)Cat. No. CW Size Reference Specification R0.4 R0.8 R1.2 R1.6 R2.0 R2.4 R3.2 14mm LNEX08 (Refer to H125 ) LNEX 0804SSPNEL-L Q Q Q 18 to 22mm LNEX13 (Refer to H127 ) LNEX 0804SSPNEL-G Q Q Q A multi-step design is required if the CW size exceeds the above. LNEX 1306SSPNEL-L LNEX 1306SSPNEL-G ■ Accessories Left-handed (□ mark) products are made-to-order items. Q marked products are not available. Screw Wrench Anti-seizure Cream [Special Insert Shape Support] LNEX08 has Nose Radius (RE)=0.4 to 1.6mm LNEX13 has Nose Radius (RE)=0.4 to 3.2mm. Both right hand and left hand types are supported. (Radius shape after machining may differ from the mounted insert nose radius RE size.) 另 Disc Type CW OAL 另 Boss Type CW LF KDP CBDP · Effective No. of Teeth Desired: H134
