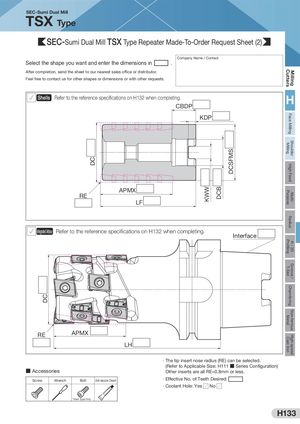

DC DC KWW DCB DCSFMS High-speedCast IronNon-ferrousMetalChamferingGroove /T-SlotR / 3DProfilingRadiusMulti-PurposeHigh FeedShoulderMillingFace MillingMillingCutters SEC-Sumi Dual Mill TSX Type SEC-Sumi Dual Mill TSX Type Repeater Made-To-Order Request Sheet (2) Company Name / Contact Select the shape you want and enter the dimensions in . After completion, send the sheet to our nearest sales office or distributor. Feel free to contact us for other shapes or dimensions or with other requests. 另 Shells Refer to the reference specifications on H132 when completing. H CBDP KDP APMX RE LF 另 Integrated Arbour Refer to the reference specifications on H132 when completing. Interface RE APMX LH · The tip insert nose radius (RE) can be selected. (Refer to Applicable Size: H111 ■ Series Configuration) ■ Accessories Other inserts are all RE=0.8mm or less. Screw Wrench Bolt Anti-seizure Cream · Effective No. of Teeth Desired: · Coolant Hole: Yes ✔ No ✔ *Shell Type Only H133
