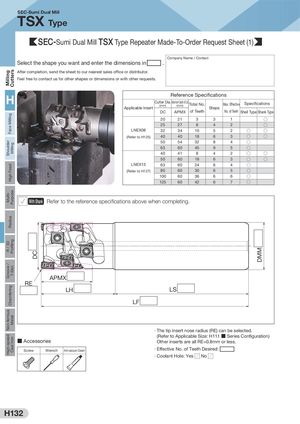

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron DC DMM SEC-Sumi Dual Mill TSX Type SEC-Sumi Dual Mill TSX Type Repeater Made-To-Order Request Sheet (1) Company Name / Contact Select the shape you want and enter the dimensions in . After completion, send the sheet to our nearest sales office or distributor. Feel free to contact us for other shapes or dimensions or with other requests. H Reference SpecificationsApplicable Insert Cutter Dia. Maximum Depth of Cut (mm) (mm) Total No.StepsMax. EffectiveSpecifications DC APMX of Teeth No. of Teeth Shell Type Shank Type 20 21 3 3 1 ○ 25 27 8 4 2 ○ LNEX08 32 34 10 5 2 ○ ○ (Refer to H125) 40 40 18 6 3 ○ ○ 50 54 32 8 4 ○ 63 60 45 9 5 ○ 40 41 8 4 2 ○ ○ 50 60 18 6 3 ○ ○ LNEX13 63 60 24 6 4 ○ (Refer to H127) 80 60 30 6 5 ○ 100 60 36 6 6 ○ 125 60 42 6 7 ○ 另 With Shank Refer to the reference specifications above when completing. APMX RE LH LS LF · The tip insert nose radius (RE) can be selected. (Refer to Applicable Size: H111 ■ Series Configuration) ■ Accessories Other inserts are all RE=0.8mm or less. Screw Wrench Anti-seizure Cream · Effective No. of Teeth Desired: · Coolant Hole: Yes ✔ No ✔ H132
