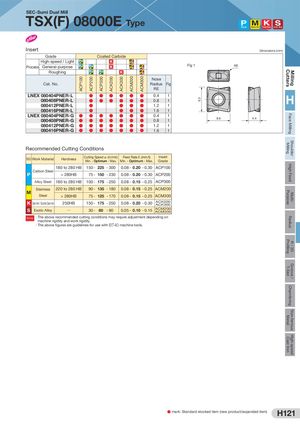

ACP100 ACP200 ACP300 ACK200 ACK300 ACM200 ACM300 9.3 High-speedCast IronNon-ferrousMetalChamferingGroove /T-SlotR / 3DProfilingRadiusMulti-PurposeHigh FeedShoulderMillingFace MillingMillingCutters SEC-Sumi Dual Mill TSX(F) 08000E Type Steel Stainless Steel Cast Iron Exotic Alloy Insert  Dimensions (mm) Grade Coated Carbide High-speed / Light K Process General-purpose K Fig 1 RE Roughing K Nose Cat. No. Radius Fig RE LNEX 080404PNER-L ● ● ● ● ● ● 0.4 1LNEX 080408PNER-L●●●●●●0.81 H LNEX 080412PNER-L ● ● ● ● 1.2 1 LNEX 080416PNER-L ● ● ● ● 1.6 1 LNEX 080404PNER-G ● ● ● ● ● ● ● 0.4 1 LNEX 080408PNER-G ● ● ● ● ● ● ● 0.8 1 8.6 4.4 LNEX 080412PNER-G ● ● ● ● ● ● ● 1.2 1 LNEX 080416PNER-G ● ● ● ● ● ● ● 1.6 1 Recommended Cutting Conditions ISO Work Material Hardness Cutting Speed vc (m/min) Feed Rate fz (mm/t) InsertMin. - Optimum - Max.Min. - Optimum - Max.Grade 180 to 280 HB 150 - 225 - 300 0.08 - 0.20 - 0.30 ACP100 Carbon Steel P > 280HB 75 - 150 - 230 0.08 - 0.20 - 0.30 ACP200 Alloy Steel 180 to 280 HB 100 - 175 - 250 0.08 - 0.15 - 0.25 ACP300 Stainless 220 to 280 HB 90 - 135 - 180 0.08 - 0.15 - 0.25 ACM200 M Steel > 280HB 75 - 125 - 170 0.08 - 0.15 - 0.25 ACM300 K Cast Iron / Ductile Cast Iron 250HB 150 - 175 - 250 0.08 - 0.20 - 0.30 ACK200ACK300 S Exotic Alloy Q 30 - 60 - 90 0.05 - 0.10 - 0.15 ACM200ACM300 Note · The above recommended cutting conditions may require adjustment depending on machine rigidity and work rigidity. · The above figures are guidelines for use with BT40 machine tools. ● mark: Standard stocked item (new product/expanded item) H121
