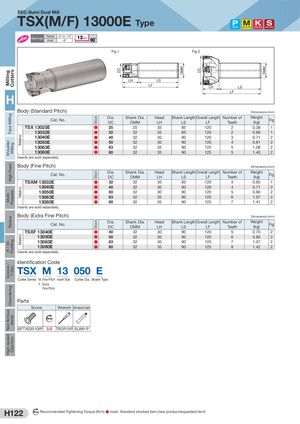

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron MetricMetricMetric StockStockStock DC DMM DC DMM SEC-Sumi Dual Mill TSX(M/F) 13000E Type Steel Stainless Steel Cast Iron Exotic Alloy Radial –31 to –15° Rake Angle Axial –6° Fig 1 Fig 2 LH LS LF LH LS LF H Body (Standard Pitch)  Dimensions (mm) Cat. No. Dia.DC Shank Dia.DMM Head Shank Length Overall Length Number ofLHLSLFTeeth Weight (kg) Fig TSX 13025E ● 25 25 35 85 120 2 0.38 1 TSX 13032E ● 32 32 35 85 120 2 0.66 1 TSX 13040E ● 40 32 30 90 120 3 0.71 2 TSX 13050E ● 50 32 30 90 120 4 0.81 2 TSX 13063E ● 63 32 35 90 125 5 1.08 2 TSX 13080E ● 80 32 35 90 125 5 1.40 2 Inserts are sold separately. Body (Fine Pitch)  Dimensions (mm) Cat. No. Dia.DC Shank Dia.DMM Head Shank Length Overall Length Number ofLHLSLFTeeth Weight (kg) Fig TSXM 13032E ● 32 32 35 85 120 3 0.65 1 TSXM 13040E ● 40 32 30 90 120 4 0.71 2 TSXM 13050E ● 50 32 30 90 120 5 0.80 2 TSXM 13063E ● 63 32 35 90 125 6 1.07 2 TSXM 13080E ● 80 32 35 90 125 7 1.41 2 Inserts are sold separately. Body (Extra Fine Pitch)  Dimensions (mm) Cat. No. Dia.DC Shank Dia.DMM Head Shank Length Overall Length Number ofLHLSLFTeeth Weight (kg) Fig TSXF 13040E ● 40 32 30 90 120 5 0.70 2 TSXF 13050E ● 50 32 30 90 120 6 0.80 2 TSXF 13063E ● 63 32 30 90 125 7 1.07 2 TSXF 13080E ● 80 32 35 90 125 8 1.42 2 Inserts are sold separately. Identification Code TSX M 13 050 E Cutter Series M: Fine Pitch Insert Size Cutter Dia. Shank Type F : Extra Fine Pitch Parts Screw Wrench Anti-seizure Cream Nm BFTX03510IP 3.0 TRDR15IP SUMI-P H122 N m Recommended Tightening Torque (N·m) ● mark: Standard stocked item (new product/expanded item)
