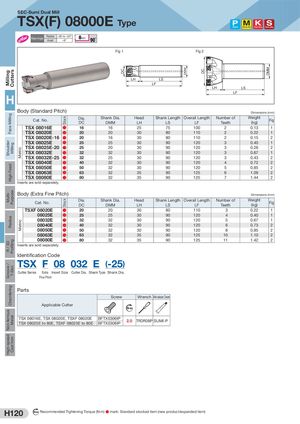

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron MetricMetric StockStock DC DMM DC DMM SEC-Sumi Dual Mill TSX(F) 08000E Type Steel Stainless Steel Cast Iron Exotic Alloy Radial –36 to –20° Rake Angle Axial –6° Fig 1 Fig 2 LH LS LF LH LS LF H Body (Standard Pitch) Dimensions (mm) Cat. No. Dia.DC Shank Dia.DMM Head Shank Length Overall Length Number ofLHLSLFTeeth Weight (kg) Fig TSX 08016E ● 16 16 25 75 100 2 0.13 1 TSX 08020E ● 20 20 30 80 110 2 0.22 1 TSX 08020E-16 ● 20 16 30 80 110 2 0.15 2 TSX 08025E ● 25 25 30 90 120 3 0.40 1 TSX 08025E-20 ● 25 20 30 90 120 3 0.26 2 TSX 08032E ● 32 32 30 90 120 3 0.67 1 TSX 08032E-25 ● 32 25 30 90 120 3 0.43 2 TSX 08040E ● 40 32 30 90 120 4 0.72 2 TSX 08050E ● 50 32 30 90 120 5 0.85 2 TSX 08063E ● 63 32 35 90 125 6 1.09 2 TSX 08080E ● 80 32 35 90 125 7 1.44 2 Inserts are sold separately. Body (Extra Fine Pitch)  Dimensions (mm) Cat. No. Dia.DC Shank Dia.DMM Head Shank Length Overall Length Number ofLHLSLFTeeth Weight (kg) Fig TSXF 08020E ● 20 20 30 80 110 3 0.22 1 TSXF 08025E ● 25 25 30 90 120 4 0.40 1 TSXF 08032E ● 32 32 30 90 120 5 0.67 1 TSXF 08040E ● 40 32 30 90 120 6 0.73 2 TSXF 08050E ● 50 32 30 90 120 8 0.85 2 TSXF 08063E ● 63 32 35 90 125 10 1.10 2 TSXF 08080E ● 80 32 35 90 125 11 1.42 2 Inserts are sold separately. Identification Code TSX F 08 032 E (-25) Cutter Series Extra Insert Size Cutter Dia. Shank Type Shank Dia. Fine Pitch Parts Screw Wrench Anti-seizure Cream Applicable Cutter Nm TSX 08016E, TSX 08020E, TSXF 08020E BFTX0306IPTSX 08025E to 80E, TSXF 08025E to 80EBFTX0308IP2.0TRDR08IP SUMI-P H120 N m Recommended Tightening Torque (N·m) ● mark: Standard stocked item (new product/expanded item)
