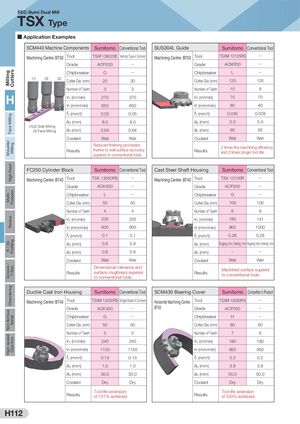

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron SEC-Sumi Dual Mill TSX Type ■ Application Examples SCM440 Machine Components Sumitomo Conventional Tool SUS304L Guide Sumitomo Conventional Tool Machining Centre: BT30 Tool TSXF 08020E Vertical Type 4 Corners Machining Centre: BT50 Tool TSXM 13125RS Q Grade ACP200 Q Grade ACM200 Q Chipbreaker G Q Chipbreaker L Q (1) (3) (2) Cutter Dia. (mm) 20 20 Cutter Dia. (mm) 125 125 Number of Teeth 3 3 Number of Teeth 10 8 H vc (m/min) 270 270 vc (m/min) 70 70 vf (mm/min) 650 650 vf (mm/min) 80 40 fz (mm/t) 0.05 0.05 fz (mm/t) 0.045 0.028 ap (mm) 8.0 8.0 ap (mm) 5.0 5.0 (1)(2) Side Milling (3) Face Milling ae (mm) 0.64 0.64 ae (mm) 95 95 Coolant Wet Wet Coolant Wet Wet Reduced finishing processesResultsthanks to wall surface accuracysuperior to conventional tools.2 times the machining efficiencyResultsand 2 times longer tool life. FC250 Cylinder Block Sumitomo Conventional Tool Cast Steel Shaft Housing Sumitomo Conventional Tool Machining Centre: BT40 Tool TSX 13050RS Q Machining Centre: BT40 Tool TSX 13100R Q Grade ACK300 Q Grade ACP200 Q Chipbreaker L Q Chipbreaker G Q Cutter Dia. (mm) 50 50 Cutter Dia. (mm) 100 100 Number of Teeth 4 4 Number of Teeth 6 8 vc (m/min) 235 235 vc (m/min) 180 141 vf (mm/min) 600 600 vf (mm/min) 962 1000 fz (mm/t) 0.1 0.1 fz (mm/t) 0.28 0.28 ap (mm) 0.8 0.8 ap (mm) Roughing: 3mm, Finishing: 1mm Roughing: 3mm, Finishing: 1mm ae (mm) 0.8 0.8 ae (mm) Q Q Coolant Wet Wet Coolant Wet Wet Dimensional tolerance andResultssurface roughness superiorto conventional tools. Machined surface superiorResultsto conventional tools. Ductile Cast Iron Housing Sumitomo Conventional Tool SCM430 Bearing Cover Sumitomo Competitor's Product Machining Centre: BT40 Tool TSXM 13050RS Single-Sided 4 Corners Horizontal Machining Centre: Tool TSXM 13080RS Q Grade ACK300 Q BT50 Grade ACP200 Q Chipbreaker G Q Chipbreaker H Q Cutter Dia. (mm) 50 50 Cutter Dia. (mm) 80 80 Number of Teeth 5 5 Number of Teeth 7 6 vc (m/min) 240 240 vc (m/min) 180 180 vf (mm/min) 1150 1150 vf (mm/min) 950 950 fz (mm/t) 0.13 0.13 fz (mm/t) 0.2 0.2 ap (mm) 1.0 1.0 ap (mm) 3.8 3.8 ae (mm) 30.0 30.0 ae (mm) 50.0 50.0 Coolant Dry Dry Coolant Dry Dry Tool life extension Tool life extension Results of 131% achieved. Results of 333% achieved. H112
