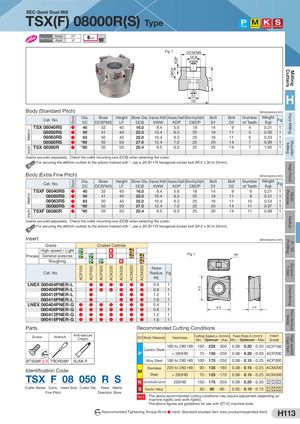

Общий каталог Sumitomo 2019 - 2020 - страница 557

MetricInchMetricInch StockStock ACP100 ACP200 ACP300 ACK200 ACK300 ACM200 ACM300 CBDP KDP 9.3 LF High-speedCast IronNon-ferrousMetalChamferingGroove /T-SlotR / 3DProfilingRadiusMulti-PurposeHigh FeedShoulderMillingFace MillingMillingCutters SEC-Sumi Dual Mill TSX(F) 08000R(S) Type Steel Stainless Steel Cast Iron Exotic Alloy Radial -20° Rake Angle Axial -6° Fig 1 DCSFMS DCB KWW D2 D1DC H Body (Standard Pitch)  Dimensions (mm) Cat. No. Dia. Boss Height Bore Dia. Keyway Width Keyway Depth Mounting Depth BoltDCDCSFMSLFDCBKWWKDPCBDPD1BoltD2Numberof Teeth Weight(kg) Fig TSX 08040RS ● 40 33 40 16.0 8.4 5.6 18 14 9 4 0.21 1 TSX 08050RS ● 50 41 40 22.0 10.4 6.3 20 18 11 5 0.30 1 TSX 08063RS ● 63 50 40 22.0 10.4 6.3 20 18 11 6 0.53 1 TSX 08080RS ● *80 55 50 27.0 12.4 7.0 22 20 14 7 0.99 1 TSX 08080R ● *80 55 50 25.4 9.5 6.0 25 20 14 7 1.00 1 Inserts are sold separately. Check the collet mounting size (DCB) when selecting the cutter. For securing the ø80mm cutters to the arbors marked with *, use a JIS B1176 hexagonal socket bolt (M12 x 30 to 35mm). Body (Extra Fine Pitch)  Dimensions (mm) Cat. No. Dia. Boss Height Bore Dia. Keyway Width Keyway Depth Mounting Depth BoltDCDCSFMSLFDCBKWWKDPCBDPD1BoltD2Numberof Teeth Weight(kg) Fig TSXF 08040RS ● 40 33 40 16.0 8.4 5.6 18 14 9 6 0.21 1 TSXF 08050RS ● 50 41 40 22.0 10.4 6.3 20 18 11 8 0.31 1 TSXF 08063RS ● 63 50 40 22.0 10.4 6.3 20 18 11 10 0.54 1 TSXF 08080RS ● *80 55 50 27.0 12.4 7.0 22 20 14 11 0.97 1 TSXF 08080R ● *80 55 50 25.4 9.5 6.0 25 20 14 11 0.98 1 Inserts are sold separately. Check the collet mounting size (DCB) when selecting the cutter. For securing the ø80mm cutters to the arbors marked with *, use a JIS B1176 hexagonal socket bolt (M12 x 30 to 35mm). Insert  Dimensions (mm) Grade Coated Carbide High-speed / Light K Process General-purpose K Fig 1 RE Roughing K Nose Cat. No. Radius Fig RE LNEX 080404PNER-L ● ● ● ● ● ● 0.4 1 LNEX 080408PNER-L ● ● ● ● ● ● 0.8 1 LNEX 080412PNER-L ● ● ● ● 1.2 1 LNEX 080416PNER-L ● ● ● ● 1.6 1 LNEX 080404PNER-G ● ● ● ● ● ● ● 0.4 1 LNEX 080408PNER-G ● ● ● ● ● ● ● 0.8 1 8.6 4.4 LNEX 080412PNER-G ● ● ● ● ● ● ● 1.2 1 LNEX 080416PNER-G ● ● ● ● ● ● ● 1.6 1 Parts Recommended Cutting Conditions Screw Wrench Anti-seizureCream ISO Work Material Hardness Cutting Speed vc (m/min) Feed Rate fz (mm/t) InsertMin. - Optimum - Max.Min. - Optimum - Max.Grade 180 to 280 HB 150 - 225 - 300 0.08 - 0.20 - 0.30 ACP100 Carbon Steel P > 280HB 75 - 150 - 230 0.08 - 0.20 - 0.30 ACP200 BFTX0308IP 2.0 TRDR08IP SUMI-P Alloy Steel 180 to 280 HB 100 - 175 - 250 0.08 - 0.15 - 0.25 ACP300 Identification Code Stainless 220 to 280 HB 90 - 135 - 180 0.08 - 0.15 - 0.25 ACM200M TSX F 08 050 R S Steel > 280HB 75 - 125 - 170 0.08 - 0.15 - 0.25 ACM300K Cast Iron/Ductile Cast Iron250HB150 -175- 2500.08 - 0.20 - 0.30ACK200ACK300 Cutter Series Extra Insert Size Cutter Dia. Feed Metric S Exotic Alloy QFine PitchDirectionBore30 -60- 90 0.05 - 0.10 - 0.15 ACM200ACM300 Note · The above recommended cutting conditions may require adjustment depending on machine rigidity and work rigidity. · The above figures are guidelines for use with BT40 machine tools. N m Recommended Tightening Torque (N·m) ● mark: Standard stocked item (new product/expanded item) H113
