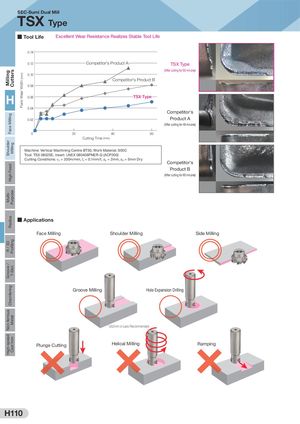

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron Flank Wear Width (mm) SEC-Sumi Dual Mill TSX Type ■ Tool Life Excellent Wear Resistance Realizes Stable Tool Life 0.14 0.12 Competitor's Product A TSX Type (After cutting for 60 minutes) 0.10 Competitor's Product B 0.08 H 0.06 TSX Type 0.04 Competitor's 0.02 Product A (After cutting for 48 minutes) 0 20 40 60 Cutting Time (min) Machine: Vertical Machining Centre BT50, Work Material: S50C Tool: TSX 08025E, Insert: LNEX 080408PNER-G (ACP200) Cutting Conditions: vc = 200m/min, fz = 0.1mm/t, ap = 2mm, ae = 5mm Dry Competitor's Product B (After cutting for 60 minutes) ■ Applications Face Milling Shoulder Milling Side Milling Groove Milling Hole Expansion Drilling *ø32mm or Less Recommended Plunge Cutting Helical Milling Ramping H110
