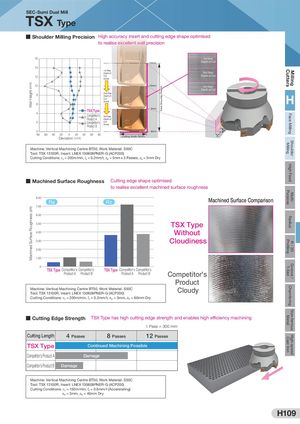

Общий каталог Sumitomo 2019 - 2020 - страница 553

Wall Height (mm)Machined Surface Roughness (μm) Total Shoulder Height High-speedCast IronNon-ferrousMetalChamferingGroove /T-SlotR / 3DProfilingRadiusMulti-PurposeHigh FeedShoulderMillingFace MillingMillingCutters SEC-Sumi Dual Mill TSX Type ■ Shoulder Milling Precision High accuracy insert and cutting edge shape optimised to realise excellent wall precision 16 1st Step 15mm Depth of Cut 14 1st Step Depth of 2nd Step 12 Cut Depth of Cut (5mm) 10 10mm 3rd Step Depth of Cut 8 2nd StepDepth ofCut(5mm)6 H 5mm TSXX Type 4 Competitor's 3rd Step Product A Depth of 2 Competitor's Cut Product B (5mm) 0 0mm ap -80 -60 -40 -20 0 20 40 60 80Deviation (μm) Cutting Width 5mm ae Machine: Vertical Machining Centre BT50, Work Material: S50C Tool: TSX 13100R, Insert: LNEX 130608PNER-G (ACP200) Cutting Conditions: vc = 200m/min, fz = 0.2mm/t, ap = 5mm x 3 Passes, ae = 5mm Dry ■ Machined Surface Roughness Cutting edge shape optimised to realise excellent machined surface roughness 8.00 Ra Rz Machined Surface Comparison 7.00 6.00 5.00 TSX Type 4.00 Without 3.00 Cloudiness 2.00 1.00 0 TSX Type Competitor's Competitor's TSX Type Competitor's Competitor's Product A Product B Product A Product B Competitor's Product Machine: Vertical Machining Centre BT50, Work Material: S50CTool: TSX 13100R, Insert: LNEX 130608PNER-G (ACP200) Cloudy Cutting Conditions: vc = 200m/min, fz = 0.2mm/t, ap = 3mm, ae = 60mm Dry ■ Cutting Edge Strength TSX Type has high cutting edge strength and enables high efficiency machining 1 Pass = 300 mm Cutting Length 4 Passes 8 Passes 12 Passes TSX Type Continued Machining Possible Competitor's Product A Damage Competitor's Product B Damage Machine: Vertical Machining Centre BT50, Work Material: S50C Tool: TSX 13100R, Insert: LNEX 130608PNER-G (ACP200) Cutting Conditions: vc = 150m/min, fz = 0.6mm/t (Accelerating) ap = 3mm, ae = 40mm Dry H109
