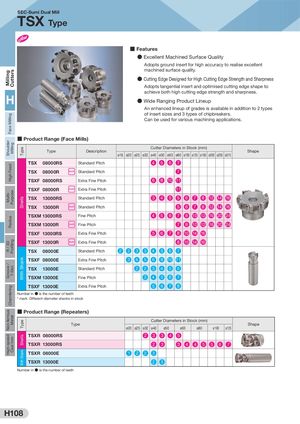

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron TypeShellsWith ShankTypeShellsWith Shank SEC-Sumi Dual Mill TSX Type ■ Features ● Excellent Machined Surface Quality Adopts ground insert for high accuracy to realise excellent machined surface quality. ● Cutting Edge Designed for High Cutting Edge Strength and Sharpness Adopts tangential insert and optimised cutting edge shape to achieve both high cutting edge strength and sharpness. H ● Wide Ranging Product Lineup An enhanced lineup of grades is available in addition to 2 types of insert sizes and 3 types of chipbreakers. Can be used for various machining applications. ■ Product Range (Face Mills) Cutter Diameters in Stock (mm) Type Description Shape ø16 ø20 ø25 ø32 ø40 ø50 ø63 ø80 ø100 ø125 ø160 ø200 ø250 ø315 TSX 08000RS Standard Pitch 4 5 6 7 TSX 08000R Inch Standard Pitch 7 TSXF 08000RS Extra Fine Pitch 6 8 10 11 TSXF 08000R Inch Extra Fine Pitch 11 TSX 13000RS Standard Pitch 3 4 5 5 6 7 8 12 14 16 TSX 13000R Inch Standard Pitch 5 6 7 8 12 14 16 TSXM 13000RS Fine Pitch 4 5 6 7 8 10 12 16 20 24 TSXM 13000R Inch Fine Pitch 7 8 10 12 16 20 24 TSXF 13000RS Extra Fine Pitch 5 6 7 8 10 14 16 TSXF 13000R Inch Extra Fine Pitch 8 10 14 16 TSX 08000E Standard Pitch 2 2* 3* 3* 4 5 6 7 TSXF 08000E Extra Fine Pitch 3 4 5 6 8 10 11 TSX 13000E Standard Pitch 2 2 3 4 5 5 TSXM 13000E Fine Pitch 3 4 5 6 7 TSXF 13000E Extra Fine Pitch 5 6 7 8 Number in ● is the number of teeth * mark: Different-diameter shanks in stock ■ Product Range (Repeaters) Cutter Diameters in Stock (mm) Type Shape ø20 ø25 ø32 ø40 ø50 ø63 ø80 ø100 ø125 TSXR 08000RS 2 3 3 4 5 TSXR 13000RS 2 3 3 4 4 5 5 6 7 TSXR 08000E 1 2 2 3 TSXR 13000E 2 3 Number in ● is the number of teeth H108
