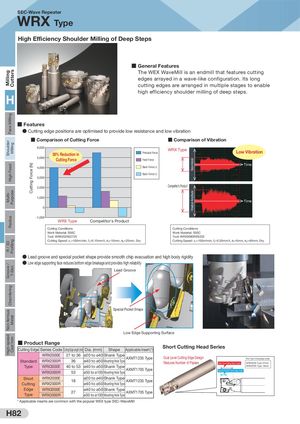

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron Cutting Force (N) Vibration AmplitudeVibration Amplitude SEC-Wave Repeater WRX Type High Efficiency Shoulder Milling of Deep Steps ■ General Features The WEX WaveMill is an endmill that features cutting edges arrayed in a wave-like configuration. Its long cutting edges are arranged in multiple stages to enable high efficiency shoulder milling of deep steps. H ■ Features ● Cutting edge positions are optimised to provide low resistance and low vibration ■ Comparison of Cutting Force ■ Comparison of Vibration 6,000 30% Reduction in WRX TypePrincipal Force Low Vibration 5,000 Cutting Force Feed Force Time 4,000 Back Force (+) Back Force (–) 3,000 2,000 Competitor's Product 1,000 Time 0 -1,000 WRX Type Competitor's Product Cutting Conditions Cutting Conditions Work Material: S50C Work Material: S50C Tool: WRX2025E2725 Tool: WRX3080RS5332 Cutting Speed: vc=100m/min, fz=0.15mm/t, ae=10mm, ap=25mm, Dry Cutting Speed: vc=150m/min, fz=0.20mm/t, ae=5mm, ap=40mm, Dry ● Lead groove and special pocket shape provide smooth chip evacuation and high body rigidity ● Low edge supporting face reduces bottom edge breakage and provides high reliability Lead Groove Special Pocket Shape Low Edge Supporting Surface ■ Product Range Cutting Edge Series Code Cutting Edge Length (mm) Dia. (mm) Shape Applicable Insert (*) Short Cutting Head Series WRX2000E 27 to 36 ø20 to ø40 Shank Type AXMT1235 Type Dual Level Cutting Edge DesignStandardWRX2000R36ø40 to ø50 Mounting Hole TypeReduces Number of Passes Short Type Cutting Edge LengthShort Type Cutting Edge LengthWRX3000 Type 27mm Type WRX3000E 40 to 53 ø40 to ø50 Shank Type WRX2000 Type 18mm AXMT1705 TypeWRX3000R53ø50 to ø100 Mounting Hole Type Standard Endmill Cutting Edge Length Short WRX2000E ø20 to ø40 Shank Type18 AXMT1235 Type Cutting WRX2000R ø40 to ø50 Mounting Hole Type Edge WRX3000E ø40 to ø50 Shank Type Type WRX3000R 27 AXMT1705 Typeø50 to ø100 Mounting Hole Type * Applicable inserts are common with the popular WEX type SEC-WaveMill H82
