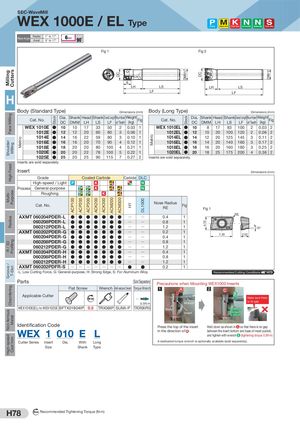

Общий каталог Sumitomo 2019 - 2020 - страница 522

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron Metric Stock ACP100 ACP200 ACP300 ACK200 ACK300 ACM200 DCACM300 H1 DL1000 Metric DMM h7Stock DC 4.10 DMM h7 SEC-WaveMill WEX 1000E / EL Type Steel Stainless Steel Cast Iron Non-Ferrous Metal Aluminum Alloy Exotic Alloy Radial 7° to 17° Rake Angle Axial 9° to 17° Fig 1 Fig 2 6 LH LS LH LS LF LF H Body (Standard Type) Dimensions (mm) Body (Long Type) Dimensions (mm) Cat. No. Dia.DCShank DMM Head LH Shank Overal Length Number Weight LS LF of Teeth (kg) Fig Cat. No. Dia.DCShank DMM Head LH Shank Overal Length Number Weight LS LF of Teeth (kg) Fig WEX 1010E ● 10 10 17 33 50 2 0.03 1 WEX 1010EL ● 10 8 17 83 100 2 0.03 2 WEX 1012E ● 12 12 20 60 80 3 0.06 1 WEX 1012EL ● 12 10 20 100 120 2 0.06 2 WEX 1014E ● 14 16 22 59 80 3 0.10 1 WEX 1014EL ● 14 12 20 125 145 3 0.11 2 WEX 1016E ● 16 16 20 70 90 4 0.12 1 WEX 1016EL ● 16 14 20 140 160 3 0.17 2 WEX 1018E ● 18 20 20 80 100 4 0.21 1 WEX 1018EL ● 18 16 20 160 180 3 0.25 2 WEX 1020E ● 20 20 22 78 100 5 0.22 1 WEX 1020EL ● 20 18 25 175 200 4 0.36 2 WEX 1025E ● 25 20 25 90 115 7 0.27 2 Inserts are sold separately. Inserts are sold separately. Insert  Dimensions (mm) Grade Coated Carbide Carbide DLC High-speed / Light P K N Process General-purpose K N Roughing K Cat. No. Nose RadiusRE Fig Fig 1 RE AXMT 060204PDER-L ● ● ● ● ● ● ● Q Q 0.4 1 AXMT 060208PDER-L ● ● ● ● ● ● ● Q Q 0.8 1 AXMT 060212PDER-L ● ● ● ● ● ● ● Q Q 1.2 1 15° AXMT 060202PDER-G ● ● ● ● ● ● ● Q Q 0.2 1 AXMT 060204PDER-G ● ● ● ● ● ● ● Q Q 0.4 1 7.20 2.52 AXMT 060208PDER-G ● ● ● ● ● ● ● Q Q 0.8 1 AXMT 060212PDER-G ● ● ● ● ● ● ● Q Q 1.2 1 AXMT 060204PDER-H ● ● ● ● ● ● ● Q Q 0.4 1 AXMT 060208PDER-H ● ● ● ● ● ● ● Q Q 0.8 1 AXMT 060212PDER-H ● ● ● ● ● ● ● Q Q 1.2 1 AXMT 060202PDFR-S Q Q Q Q Q Q Q ● ● 0.2 1 -L: Low Cutting Force, G: General-purpose, H: Strong Edge, S: For Aluminum Alloy. Recommended Cutting Conditions H73 Parts (Sold Separately) Precautions when Mounting WEX1000 Inserts Flat Screw Wrench Anti-seizure Cream Torque Wrench 1 A 2 C Applicable Cutter Nm B Make sure there 0.5N·m Wrench is no gap WEX1010E(EL) to WEX1025E BFTX01804IP 0.5 TRX06IP SUMI-P TRDR06IP05 Body Tightening Insert Torque0.5N·m Identification Code Press the top of the insert Hold down as shown in C so that there is no gap WEX 1 010 E L in the direction of A . between the insert bottom and base of insert pocket,and tighten with wrenchB(tightening torque 0.5N·m) Cutter Series Insert Dia. With Long A dedicated torque wrench is optionally available (sold separately). Size Shank Type H78 N m Recommended Tightening Torque (N·m)
