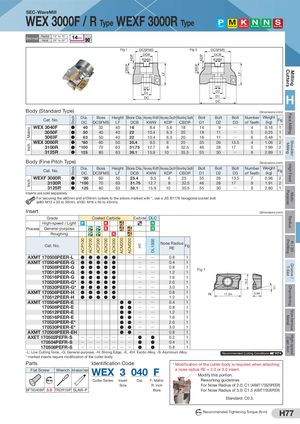

Общий каталог Sumitomo 2019 - 2020 - страница 521

MetricInchInch StockStock ACP100 ACP200 ACP300 ACK200 ACK300 ACM200 CBDP KDPACM300 H1 DL1000 LF CBDP KDP LF 10.2 11° High-speedCast IronNon-ferrousMetalChamferingGroove /T-SlotR / 3DProfilingRadiusMulti-PurposeHigh FeedShoulderMillingFace MillingMillingCutters SEC-WaveMill WEX 3000F / R Type WEXF 3000R Type Steel Stainless Steel Cast Iron Non-Ferrous Metal Aluminum Alloy Exotic Alloy Radial 12° to 15° Rake Angle Axial 29° to 24° Fig 1 DCSFMS Fig 2 DCSFMS DCB DCB KWW KWW D2 D3 D1 D2 DC D1DC H Body (Standard Type)  Dimensions (mm) Cat. No. Dia. Boss Height Bore Dia. Keyway Width Keyway Depth Mounting Depth BoltDCDCSFMSLFDCBKWWKDPCBDPD1BoltD2 BoltD3 Numberof Teeth Weight(kg) Fig WEX 3040F ● 40 32 40 16 8.4 5.6 18 14 9 Q 4 0.16 1 WEX 3050F ● 50 40 40 22 10.4 6.3 20 18 11 Q 5 0.25 1 WEX 3063F ● 63 50 40 22 10.4 6.3 20 18 11 Q 6 0.48 1 WEX 3080R ● *80 60 50 25.4 9.5 6 25 35 26 13.5 4 1.06 2 WEX 3100R ● *100 70 63 31.75 12.7 8 32.5 46 28 17 5 1.99 2 WEX 3125R ● 125 80 63 38.1 15.9 10 35.5 55 30 Q 6 2.89 1 Body (Fine Pitch Type)  Dimensions (mm) Cat. No. Dia. Boss Height Bore Dia. Keyway Width Keyway Depth Mounting Depth BoltDCDCSFMSLFDCBKWWKDPCBDPD1BoltD2 BoltD3 Numberof Teeth Weight(kg) Fig WEXF 3080R ● *80 60 50 25.4 9.5 6 25 35 26 13.5 7 0.98 2 WEXF 3100R ● *100 70 63 31.75 12.7 8 32.5 46 28 17 8 1.91 2 WEXF 3125R ● 125 80 63 38.1 15.9 10 35.5 55 30 Q 9 2.80 1 Inserts are sold separately. For securing the ø80mm and ø100mm cutters to the arbors marked with *, use a JIS B1176 hexagonal socket bolt (ø80: M12 x 30 to 35mm, ø100: M16 x 40 to 45mm). Insert  Dimensions (mm) Grade Coated Carbide Carbide DLC High-speed / Light P K N Process General-purpose K N Roughing K Cat. No. Nose Radius RE Fig AXMT 170508PEER-L ● ● ● ● ● Q Q 0.8 1 AXMT 170504PEER-G ● ● ● ● ● Q Q 0.4 1 AXMT 170508PEER-G ● ● ● ● ●AXMT 170512PEER-G●●●●● Q Q 0.8 1 Fig 1QQ1.21 AXMT 170516PEER-G ● ● ● ● ● Q Q 1.6 1 AXMT 170520PEER-G* ● ● ● ● ● Q Q 2.0 1 AXMT 170530PEER-G* ● ● ● ● ● Q Q 3.0 1 AXMT 170508PEER-H ● ● ● ● ● Q Q 0.8 1 RE 17.54 5.59 AXMT 170512PEER-H ● ● ● ● ● Q Q 1.2 1 AXMT 170504PEER-E ● ● Q Q 0.4 1 AXMT 170508PEER-E ● ● Q Q 0.8 1 AXMT 170512PEER-E ● ● Q Q 1.2 1 AXMT 170516PEER-E ● ● Q Q 1.6 1 AXMT 170520PEER-E* ● ● Q Q 2.0 1 AXMT 170530PEER-E* ● ● Q Q 3.0 1 AXMT 170508PEER-EH ● ● Q Q 0.8 1 AXET 170502PEFR-S Q Q Q Q Q Q Q ● ● 0.2 1 AXET 170504PEFR-S Q Q Q Q Q Q Q ● ● 0.4 1 AXET 170508PEFR-S Q Q Q Q Q Q Q ● ● 0.8 1 -L: Low Cutting force, -G: General-purpose, -H: Strong Edge, -E, -EH: Exotic Alloy, -S: Aluminum Alloy. Recommended Cutting Conditions H74 * marked inserts require modification of the cutter body. Parts Identification Code * Modification of the cutter body is required when attaching Flat Screw Wrench Anti-seizure Cream WEX 3 040 F a nose radius RE = 2.0 or 3.0 insert.Modify this portion. Nm Cutter Series Insert Dia. F: Metric Reworking guidelines Size R: Inch For Nose Radius of 2.0: C1 (AXMT170520PEER) BFTX0409IP 3.0 TRDR15IP SUMI-P Bore For Nose Radius of 3.0: C1.5 (AXMT170530PEER) Standard: C0.5. N m Recommended Tightening Torque (N·m) H77
