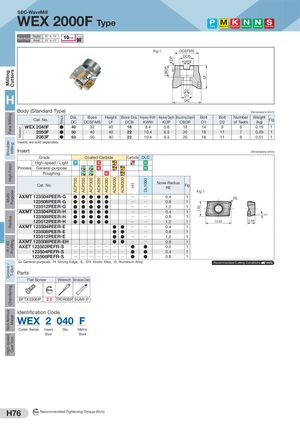

Общий каталог Sumitomo 2019 - 2020 - страница 520

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron Metric Stock ACP100 ACP200 ACP300 ACK200 ACK300 ACM200 ACM300 H1 DL1000 CBDP KDP 7.00 LF SEC-WaveMill WEX 2000F Type Steel Stainless Steel Cast Iron Non-Ferrous Metal Aluminum Alloy Exotic Alloy Radial 16° to 18° Rake Angle Axial 23° to 25° Fig 1 DCSFMS DCB KWW D2 H D1DC Body (Standard Type)  Dimensions (mm) Cat. No. Dia. Boss Height Bore Dia. Keyway Width Keyway Depth Mounting Depth BoltDCDCSFMSLFDCBKWWKDPCBDPD1BoltD2 Numberof Teeth Weight(kg) Fig WEX 2040F ● 40 32 40 16 8.4 5.6 18 14 9 6 0.19 1 WEX 2050F ● 50 40 40 22 10.4 6.3 20 18 11 7 0.29 1 WEX 2063F ● 63 50 40 22 10.4 6.3 20 18 11 8 0.51 1 Inserts are sold separately. Insert  Dimensions (mm) Grade Coated Carbide Carbide DLC High-speed / Light P K N Process General-purpose K N Roughing K Cat. No. Nose RadiusRE Fig Fig 1 AXMT 123504PEER-G ● ● ● ● ● Q Q 0.4 1 RE AXMT 123508PEER-G ● ● ● ● ● Q Q 0.8 1 AXMT 123512PEER-G ● ● ● ● ● Q Q 1.2 1 AXMT 123504PEER-H ● ● ● ● ● Q Q 0.4 1 AXMT 123508PEER-H ● ● ● ● ● Q Q 0.8 1 11° AXMT 123512PEER-H ● ● ● ● ● Q Q 1.2 1 12.00 3.58 AXMT 123504PEER-E ● ● Q Q 0.4 1 AXMT 123508PEER-E ● ● Q Q 0.8 1 AXMT 123512PEER-E ● ● Q Q 1.2 1 AXMT 123508PEER-EH ● ● Q Q 0.8 1 AXET 123502PEFR-S Q Q Q Q Q Q Q ● ● 0.2 1 AXET 123504PEFR-S Q Q Q Q Q Q Q ● ● 0.4 1 AXET 123508PEFR-S Q Q Q Q Q Q Q ● ● 0.8 1 -G: General-purpose, -H: Strong Edge, -E, -EH: Exotic Alloy, -S: Aluminum Alloy. Recommended Cutting Conditions H73 Parts Flat Screw Wrench Anti-seizure Cream Nm BFTX0306IP 2.0 TRDR08IP SUMI-P Identification Code WEX 2 040 F Cutter Series Insert Dia. Metric Size Bore H76 N m Recommended Tightening Torque (N·m)
