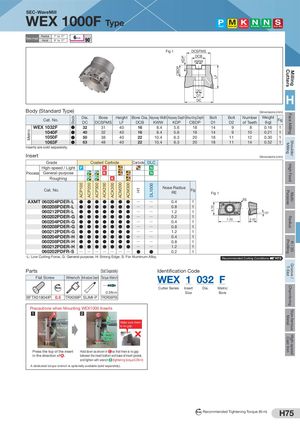

Общий каталог Sumitomo 2019 - 2020 - страница 519

Metric Stock ACP100 ACP200 ACP300 ACK200 ACK300 ACM200 ACM300 H1 DL1000 CBDP KDP 4.10 LF High-speedCast IronNon-ferrousMetalChamferingGroove /T-SlotR / 3DProfilingRadiusMulti-PurposeHigh FeedShoulderMillingFace MillingMillingCutters SEC-WaveMill WEX 1000F Type Steel Stainless Steel Cast Iron Non-Ferrous Metal Aluminum Alloy Exotic Alloy Radial 7° to 17° Rake Angle Axial 9° to 17° Fig 1 DCSFMS DCB KWW D2 D1DC H Body (Standard Type)  Dimensions (mm) Cat. No. Dia. Boss Height Bore Dia. Keyway Width Keyway Depth Mounting Depth BoltDCDCSFMSLFDCBKWWKDPCBDPD1BoltD2 Numberof Teeth Weight(kg) Fig WEX 1032F ● 32 31 40 16 8.4 5.6 18 14 9 8 0.16 1 WEX 1040F ● 40 32 40 16 8.4 5.6 18 14 9 10 0.21 1 WEX 1050F ● 50 38 40 22 10.4 6.3 20 18 11 12 0.30 1 WEX 1063F ● 63 48 40 22 10.4 6.3 20 18 11 14 0.52 1 Inserts are sold separately. Insert  Dimensions (mm) Grade Coated Carbide Carbide DLC High-speed / Light P K N Process General-purpose K N Roughing K Cat. No. Nose RadiusRE Fig Fig 1 AXMT 060204PDER-L ● ● ● ● ● ● ● Q Q 0.4 1 RE AXMT 060208PDER-L ● ● ● ● ● ● ● Q Q 0.8 1 AXMT 060212PDER-L ● ● ● ● ● ● ● Q Q 1.2 1 15° AXMT 060202PDER-G ● ● ● ● ● ● ● Q Q 0.2 1 AXMT 060204PDER-G ● ● ● ● ● ● ● Q Q 0.4 1 7.20 2.52 AXMT 060208PDER-G ● ● ● ● ● ● ● Q Q 0.8 1 AXMT 060212PDER-G ● ● ● ● ● ● ● Q Q 1.2 1 AXMT 060204PDER-H ● ● ● ● ● ● ● Q Q 0.4 1 AXMT 060208PDER-H ● ● ● ● ● ● ● Q Q 0.8 1 AXMT 060212PDER-H ● ● ● ● ● ● ● Q Q 1.2 1 AXMT 060202PDFR-S Q Q Q Q Q Q Q ● ● 0.2 1 -L: Low Cutting Force, G: General-purpose, H: Strong Edge, S: For Aluminum Alloy. Recommended Cutting Conditions H73 Parts (Sold Separately) Identification Code Flat Screw Wrench Anti-seizure Cream Torque Wrench WEX 1 032 F Nm Cutter Series Insert Dia. Metric 0.5N·m Size Bore BFTX01804IP 0.5 TRX06IP SUMI-P TRDR06IP05 Precautions when Mounting WEX1000 Inserts 1 A 2 C B Make sure there Wrench is no gap Body Tightening Insert Torque 0.5N·m Press the top of the insert Hold down as shown in C so that there is no gap in the direction of A . between the insert bottom and base of insert pocket, and tighten with wrench B (tightening torque 0.5N·m) A dedicated torque wrench is optionally available (sold separately). N m Recommended Tightening Torque (N·m) H75
