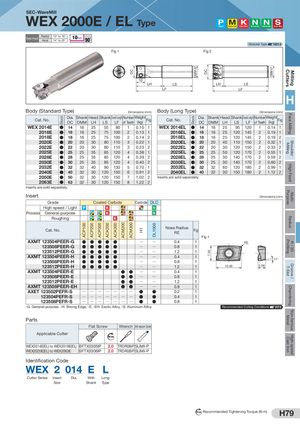

Общий каталог Sumitomo 2019 - 2020 - страница 523

Stock ACP100 ACP200 ACP300 ACK200 ACK300 ACM200 DCACM300 H1 DL1000 DMM h7Stock DC 7.00 DMM h7 High-speedCast IronNon-ferrousMetalChamferingGroove /T-SlotR / 3DProfilingRadiusMulti-PurposeHigh FeedShoulderMillingFace MillingMillingCutters SEC-WaveMill WEX 2000E / EL Type Steel Stainless Steel Cast Iron Non-Ferrous Metal Aluminum Alloy Exotic Alloy Radial 10° to 18° Rake Angle Axial 14° to 25° Modular Type H213 Fig 1 Fig 2 10 LH LS LH LS LF LF H Body (Standard Type)  Dimensions (mm) Body (Long Type)  Dimensions (mm) Cat. No. Dia.DCShank DMM Head LH Shank LS Overal Length LF Number of Teeth Weight (kg) Fig Cat. No. Dia.DC Shank DMM Head LH Shank LS Overal Length LF Number of Teeth Weight (kg) Fig WEX 2014E ● 14 16 25 55 80 1 0.10 1 WEX 2014EL ● 14 16 25 95 120 1 0.14 1 WEX 2016E ● 16 16 25 75 100 2 0.13 1 WEX 2016EL ● 16 16 25 120 145 2 0.19 1 WEX 2018E ● 18 16 25 75 100 2 0.14 2 WEX 2018EL ● 18 16 25 120 145 2 0.19 2 WEX 2020E ● 20 20 30 80 110 3 0.22 1 WEX 2020EL ● 20 20 40 110 150 2 0.32 1 WEX 2022E ● 22 20 30 80 110 3 0.23 2 WEX 2022EL ● 22 20 30 120 150 2 0.33 2 WEX 2025E ● 25 25 35 85 120 4 0.38 1 WEX 2025EL ● 25 25 50 120 170 2 0.55 1 WEX 2028E ● 28 25 35 85 120 4 0.39 2 WEX 2028EL ● 28 25 30 140 170 2 0.59 2 WEX 2030E ● 30 25 35 85 120 4 0.40 2 WEX 2030EL ● 30 25 30 140 170 2 0.60 2 WEX 2032E ● 32 32 40 90 130 5 0.70 1 WEX 2032EL ● 32 32 60 120 180 2 0.99 1 WEX 2040E ● 40 32 30 120 150 6 0.91 2 WEX 2040EL ● 40 32 30 150 180 2 1.12 2 WEX 2050E ● 50 32 30 120 150 7 1.02 2 Inserts are sold separately. WEX 2063E ● 63 32 30 120 150 8 1.22 2 Inserts are sold separately. Insert  Dimensions (mm) Grade Coated Carbide Carbide DLC High-speed / Light P K N Process General-purpose K N Roughing K Cat. No. Nose RadiusRE Fig Fig 1 AXMT 123504PEER-G ● ● ● ● ● Q Q 0.4 1 RE AXMT 123508PEER-G ● ● ● ● ● Q Q 0.8 1 AXMT 123512PEER-G ● ● ● ● ● Q Q 1.2 1 AXMT 123504PEER-H ● ● ● ● ● Q Q 0.4 1 AXMT 123508PEER-H ● ● ● ● ● Q Q 0.8 1 11° AXMT 123512PEER-H ● ● ● ● ● Q Q 1.2 1 12.00 3.58 AXMT 123504PEER-E ● ● Q Q 0.4 1 AXMT 123508PEER-E ● ● Q Q 0.8 1 AXMT 123512PEER-E ● ● Q Q 1.2 1 AXMT 123508PEER-EH ● ● Q Q 0.8 1 AXET 123502PEFR-S Q Q Q Q Q Q Q ● ● 0.2 1 AXET 123504PEFR-S Q Q Q Q Q Q Q ● ● 0.4 1 AXET 123508PEFR-S Q Q Q Q Q Q Q ● ● 0.8 1 -G: General-purpose, -H: Strong Edge, -E, -EH: Exotic Alloy, -S: Aluminum Alloy. Recommended Cutting Conditions H73 Parts Flat Screw Wrench Anti-seizure Cream Applicable Cutter Nm WEX2014E(EL) to WEX2018E(EL) BFTX0305IP 2.0 TRDR08IP SUMI-P WEX2020E(EL) to WEX2063E BFTX0306IP 2.0 TRDR08IP SUMI-P Identification Code WEX 2 014 E L Cutter Series Insert Dia. With Long Size Shank Type N m Recommended Tightening Torque (N·m) H79
