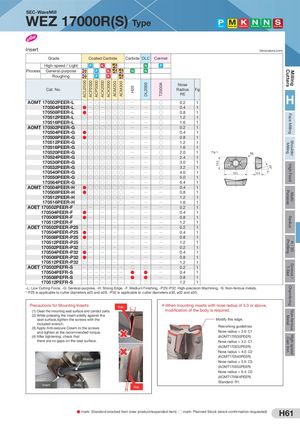

Общий каталог Sumitomo 2019 - 2020 - страница 505

ACU2500 ACP2000 ACP3000 ACK2000 ACK3000 ACM200 ACM300 H20 DL2000 T2500A7.5 10.5 20° 20° High-speedCast IronNon-ferrousMetalChamferingGroove /T-SlotR / 3DProfilingRadiusMulti-PurposeHigh FeedShoulderMillingFace MillingMillingCutters SEC-WaveMill WEZ 17000R(S) Type Steel Stainless Steel Cast Iron Non-Ferrous Metal Aluminum Alloy Exotic Alloy Insert  Dimensions (mm) Grade Coated Carbide Carbide DLC Cermet High-speed / Light P K N P Process General-purpose P K N N Roughing P K Nose Cat. No. Radius Fig RE AOMT 170502PEER-L ○ Q ○ Q ○ ○ ○ Q Q ○ 0.2 1 H AOMT 170504PEER-L ● Q ○ Q ○ ○ ○ Q Q ○ 0.4 1 AOMT 170508PEER-L ● Q ○ Q ○ ○ ○ Q Q ○ 0.8 1 AOMT 170512PEER-L ○ Q ○ Q ○ ○ ○ Q Q ○ 1.2 1 AOMT 170516PEER-L ○ Q ○ Q ○ ○ ○ Q Q ○ 1.6 1 AOMT 170502PEER-G ○ ○ ○ ○ ○ ○ ○ Q Q ○ 0.2 1 AOMT 170504PEER-G ● ○ ○ ○ ○ ○ ○ Q Q ○ 0.4 1 AOMT 170508PEER-G ● ○ ○ ○ ○ ○ ○ Q Q ○ 0.8 1 AOMT 170512PEER-G ○ ○ ○ ○ ○ ○ ○ Q Q ○ 1.2 1 AOMT 170516PEER-G ○ ○ ○ ○ ○ ○ ○ Q Q ○ 1.6 1 AOMT 170520PEER-G ○ ○ ○ ○ ○ ○ ○ Q Q Fig○1 2.0 1 Fig 1RE RE AOMT 170524PEER-G ○ ○ ○ ○ ○ ○ ○ Q Q ○ 2.4 1 AOMT 170530PEER-G ○ ○ ○ ○ ○ ○ ○ Q Q ○ 3.0 1 AOMT 170532PEER-G ○ ○ ○ ○ ○ ○ ○ Q Q ○ 3.2 1 AOMT 170540PEER-G ○ ○ ○ ○ ○ ○ ○ Q Q ○ 12.8 4.0 3.6 1 19.5 5.5 AOMT 170550PEER-G ○ ○ ○ ○ ○ ○ ○ Q Q ○ 5.0 1 AOMT 170564PEER-G ○ ○ ○ ○ ○ ○ ○ Q Q ○ 6.4 1 AOMT 170504PEER-H ● ○ ○ ○ ○ ○ ○ Q Q Q 0.4 1 AOMT 170508PEER-H ● ○ ○ ○ ○ ○ ○ Q Q Q 0.8 1 AOMT 170512PEER-H ○ ○ ○ ○ ○ ○ ○ Q Q Q 1.2 1 AOMT 170516PEER-H ○ ○ ○ ○ ○ ○ ○ Q Q Q 1.6 1 AOET 170502PEER-F ○ Q Q Q Q Q Q 0.2 1 AOET 170504PEER-F ● Q Q Q Q Q Q 0.4 1 AOET 170508PEER-F ● Q Q Q Q Q Q 0.8 1 AOET 170512PEER-F ○ Q Q Q Q Q Q 1.2 1 AOET 170502PEER-P25 ○ Q Q Q Q Q Q 0.2 1 AOET 170504PEER-P25 ● Q Q Q Q Q Q 0.4 1 AOET 170508PEER-P25 ● Q Q Q Q Q Q 0.8 1 AOET 170512PEER-P25 ○ Q Q Q Q Q Q 1.2 1 AOET 170502PEER-P32 ○ Q Q Q Q Q Q 0.2 1 AOET 170504PEER-P32 ● Q Q Q Q Q Q 0.4 1 AOET 170508PEER-P32 ● Q Q Q Q Q Q 0.8 1 AOET 170512PEER-P32 ○ Q Q Q Q Q Q 1.2 1 AOET 170502PEFR-S Q Q Q Q Q Q Q ○ ○ Q 0.2 1 AOET 170504PEFR-S Q Q Q Q Q Q Q ● ● Q 0.4 1 AOET 170508PEFR-S Q Q Q Q Q Q Q ● ● Q 0.8 1 AOET 170512PEFR-S Q Q Q Q Q Q Q ○ ○ Q 1.2 1 -L: Low Cutting Force, -G: General-purpose, -H: Strong Edge, -F: Medium Finishing, -P25/-P32: High-precision Machining, -S: Non-ferrous metals. *-P25 is applicable to cutter diameters ø25 and ø28. -P32 is applicable to cutter diameters ø30, ø32 and ø35. Precautions for Mounting Inserts Gap ＊When mounting inserts with nose radius of 3.0 or above, (1) Clean the mounting seat surface and contact parts. modification of the body is required. (2) While pressing the insert solidly against the seat surface,tighten the screws with the Modify this edge. included wrench. (3) Apply Anti-seizure Cream to the screws Reworking guidelines and tighten at the recommended torque. Nose radius = 3.0: C1 (4) After tightening, check that (AOMT170530PEER) there are no gaps on the seat surface. Nose radius = 3.2: C1 (AOMT170532PEER) Nose radius = 4.0: C2 (AOMT170540PEER) Wrench Nose radius = 5.0: C5 (AOMT170550PEER) Nose radius = 6.4: C5 (AOMT170564PEER) Standard: R1. Insert Body Gap ● mark: Standard stocked item (new product/expanded item) ○ mark: Planned Stock (stock confirmation requested) H61
