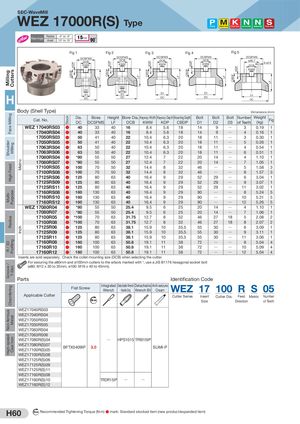

Общий каталог Sumitomo 2019 - 2020 - страница 504

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron MetricInch Stock CBDP KDP LF CBDP KDP LF CBDP KDP LF CBDP KDP LF CBDP KDP LF SEC-WaveMill WEZ 17000R(S) Type Steel Stainless Steel Cast Iron Non-Ferrous Metal Aluminum Alloy Exotic Alloy Radial -4° to -9° Rake Angle Axial 10° to 15° Fig 1 Fig 2 Fig 3 Fig 4 Fig 5 DCSFMS DCSFMS DCSFMS DCSFMS DCSFMS DCB DCB DCB DCBKWWKWWKWWKWW ø66.7 4-ø14DCB KWW D3 D2 D2 H D1 D1 D1 D1 D1DCDCDCDCDC Body (Shell Type)  Dimensions (mm) Cat. No. Dia. Boss Height Bore Dia. Keyway Width Keyway Depth Mounting Depth BoltDCDCSFMSLFDCBKWWKDPCBDPD1BoltD2 BoltD3 Number Weightof Teeth(kg) Fig WEZ 17040RS03 ● 40 33 40 16 8.4 5.6 18 14 9 Q 3 0.19 1 WEZ 17040RS04 ● 40 33 40 16 8.4 5.6 18 14 9 Q 4 0.16 1 WEZ 17050RS03 ● 50 41 40 22 10.4 6.3 20 18 11 Q 3 0.30 1 WEZ 17050RS05 ● 50 41 40 22 10.4 6.3 20 18 11 Q 5 0.26 1 WEZ 17063RS04 ● 63 50 40 22 10.4 6.3 20 18 11 Q 4 0.54 1 WEZ 17063RS06 ● 63 50 40 22 10.4 6.3 20 18 11 Q 6 0.51 1 WEZ 17080RS04 ● *80 55 50 27 12.4 7 22 20 14 Q 4 1.10 1 WEZ 17080RS07 ● *80 55 50 27 12.4 7 22 20 14 Q 7 1.05 1 WEZ 17100RS05 ● 100 70 50 32 14.4 8 32 46 Q Q 5 1.58 3 WEZ 17100RS08 ● 100 70 50 32 14.4 8 32 46 Q Q 8 1.57 3 WEZ 17125RS06 ● 125 80 63 40 16.4 9 29 52 29 Q 6 3.04 1 WEZ 17125RS09 ● 125 80 63 40 16.4 9 29 52 29 Q 9 3.07 1 WEZ 17125RS11 ● 125 80 63 40 16.4 9 29 52 29 Q 11 3.02 1 WEZ 17160RS08 ● 160 130 63 40 16.4 9 29 90 Q Q 8 5.24 5 WEZ 17160RS10 ● 160 130 63 40 16.4 9 29 90 Q Q 10 5.31 5 WEZ 17160RS12 ● 160 130 63 40   16.4 9 29 90 Q Q 12 5.26 5 WEZ 17080R04 ● *80 55 50 25.4 9.5 6 25 20 14 Q 4 1.10 1 WEZ 17080R07 ● *80 55 50 25.4 9.5 6 25 20 14 Q 7 1.06 1 WEZ 17100R05 ● *100 70 63 31.75 12.7 8 32 46 27 18 5 2.08 2 WEZ 17100R08 ● *100 70 63 31.75 12.7 8 32 46 27 18 8 2.07 2 WEZ 17125R06 ● 125 80 63 38.1 15.9 10 35.5 55 30 Q 6 3.09 1 WEZ 17125R09 ● 125 80 63 38.1 15.9 10 35.5 55 30 Q 9 3.11 1 WEZ 17125R11 ● 125 80 63 38.1 15.9 10 35.5 55 30 Q 11 3.06 1 WEZ 17160R08 ● 160 100 63 50.8 19.1 11 38 72 Q Q 8 5.04 4 WEZ 17160R10 ● 160 100 63 50.8 19.1 11 38 72 Q Q 10 5.09 4 WEZ 17160R12 ● 160 100 63 50.8 19.1 11 38 72 Q Q 12 5.04 4 Inserts are sold separately. Check the collet mounting size (DCB) when selecting the cutter. For securing the ø80mm and ø100mm cutters to the arbors marked with *, use a JIS B1176 hexagonal socket bolt (ø80: M12 x 30 to 35mm, ø100: M16 x 40 to 45mm). Parts Identification Code Flat Screw IntegratedWrenchDetachable Wrench Detachable Anti-seizureHandle GripWrench BitCreamWEZ17 100 R S 05 Applicable Cutter Cutter Series Insert Cutter Dia. Feed Metric Number Nm Size Direction of Teeth WEZ17040RS03 WEZ17040RS04 WEZ17050RS03 WEZ17050RS05 WEZ17063RS04 WEZ17063RS06 WEZ17080R(S)04 Q HPS1015 TRB15IP WEZ17080R(S)07WEZ17100R(S)05 BFTX0409IP 3.0 SUMI-P WEZ17100R(S)08 WEZ17125R(S)06 WEZ17125R(S)09 WEZ17125R(S)11 WEZ17160R(S)08 WEZ17160R(S)10 TRDR15IP Q Q WEZ17160R(S)12 H60 N m Recommended Tightening Torque (N·m) ● mark: Standard stocked item (new product/expanded item)
