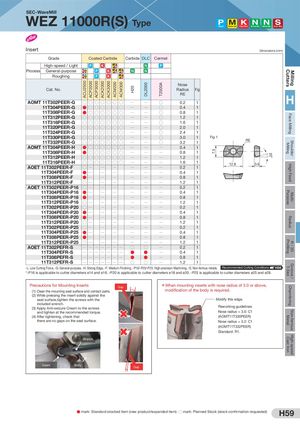

Общий каталог Sumitomo 2019 - 2020 - страница 503

ACU2500 ACP2000 ACP3000 ACK2000 ACK3000 ACM200 ACM300 H20 DL2000 T2500A 7.5 10.5 20° High-speedCast IronNon-ferrousMetalChamferingGroove /T-SlotR / 3DProfilingRadiusMulti-PurposeHigh FeedShoulderMillingFace MillingMillingCutters SEC-WaveMill WEZ 11000R(S) Type Steel Stainless Steel Cast Iron Non-Ferrous Metal Aluminum Alloy Exotic Alloy Insert  Dimensions (mm) Grade Coated Carbide Carbide DLC Cermet High-speed / Light P K N P Process General-purpose P K N N Roughing P K Nose Cat. No. Radius Fig RE AOMT 11T302PEER-G ○ ○ ○ ○ ○ ○ ○ Q Q ○ 0.2 1 H AOMT 11T304PEER-G ● ○ ○ ○ ○ ○ ○ Q Q ○ 0.4 1 11T308PEER-G ● ○ ○ ○ ○ ○ ○ Q Q ○ 0.8 1 AOMT 11T312PEER-G ○ ○ ○ ○ ○ ○ ○ Q Q ○ 1.2 1 11T316PEER-G ○ ○ ○ ○ ○ ○ ○ Q Q ○ 1.6 1 AOMT 11T320PEER-G ○ ○ ○ ○ ○ ○ ○ Q Q ○ 2.0 1 11T324PEER-G ○ ○ ○ ○ ○ ○ ○ Q Q ○ 2.4 1 AOMT 11T330PEER-G ○ ○ ○ ○ ○ ○ ○ Q Q ○ 3.0 1 Fig 1 Fig 2 11T332PEER-G ○ ○ ○ ○ ○ ○ ○ Q Q ○ 3.2 1 RE AOMT 11T304PEER-H ● ○ ○ ○ ○ ○ ○ Q Q Q 0.4 1 11T308PEER-H ● ○ ○ ○ ○ ○ ○ Q Q Q 0.8 1 AOMT 11T312PEER-H ○ ○ ○ ○ ○ ○ ○ Q Q Q 1.2 1 11T316PEER-H ○ ○ ○ ○ ○ ○ ○ Q Q Q 1.6 1 12.8 3.6 AOET 11T302PEER-F ○ Q Q Q Q Q Q 0.2 1 11T304PEER-F ● Q Q Q Q Q Q 0.4 1 AOET 11T308PEER-F ● Q Q Q Q Q Q 0.8 1 11T312PEER-F ○ Q Q Q Q Q Q 1.2 1 AOET 11T302PEER-P16 ○ Q Q Q Q Q Q 0.2 1 11T304PEER-P16 ● Q Q Q Q Q Q 0.4 1 AOET 11T308PEER-P16 ● Q Q Q Q Q Q 0.8 1 11T312PEER-P16 ○ Q Q Q Q Q Q 1.2 1 AOET 11T302PEER-P20 ○ Q Q Q Q Q Q 0.2 1 11T304PEER-P20 ● Q Q Q Q Q Q 0.4 1 AOET 11T308PEER-P20 ● Q Q Q Q Q Q 0.8 1 11T312PEER-P20 ○ Q Q Q Q Q Q 1.2 1 AOET 11T302PEER-P25 ○ Q Q Q Q Q Q 0.2 1 11T304PEER-P25 ● Q Q Q Q Q Q 0.4 1 AOET 11T308PEER-P25 ● Q Q Q Q Q Q 0.8 1 11T312PEER-P25 ○ Q Q Q Q Q Q 1.2 1 AOET 11T302PEFR-S Q Q Q Q Q Q Q ○ ○ Q 0.2 1 11T304PEFR-S Q Q Q Q Q Q Q ● ● Q 0.4 1 AOET 11T308PEFR-S Q Q Q Q Q Q Q ● ● Q 0.8 1 11T312PEFR-S Q Q Q Q Q Q Q ○ ○ Q 1.2 1 -L: Low Cutting Force, -G: General-purpose, -H: Strong Edge, -F: Medium Finishing, -P16/-P20/-P25: High-precision Machining, -S: Non-ferrous metals. Recommended Cutting Conditions H56 *-P16 is applicable to cutter diameters ø14 and ø16. -P20 is applicable to cutter diameters ø18 and ø20. -P25 is applicable to cutter diameters ø25 and ø28. Precautions for Mounting Inserts Gap ＊When mounting inserts with nose radius of 3.0 or above, (1) Clean the mounting seat surface and contact parts. modification of the body is required. (2) While pressing the insert solidly against the seat surface,tighten the screws with the Modify this edge. included wrench. (3) Apply Anti-seizure Cream to the screws Reworking guidelines and tighten at the recommended torque. Nose radius = 3.0: C1 (4) After tightening, check that (AOMT11T330PEER) there are no gaps on the seat surface. Nose radius = 3.2: C1 (AOMT11T332PEER) Standard: R1. Wrench Insert Body Gap ● mark: Standard stocked item (new product/expanded item) ○ mark: Planned Stock (stock confirmation requested) H59
