Общий каталог Sumitomo 2019 - 2020 - страница 502

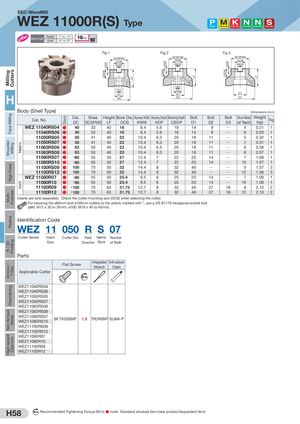

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron MetricInch Stock CBDP KDP LF CBDP KDP LF CBDP KDP LF SEC-WaveMill WEZ 11000R(S) Type Steel Stainless Steel Cast Iron Non-Ferrous Metal Aluminum Alloy Exotic Alloy Radial -7° to -11° Rake Angle Axial 14° to 15° Fig 1 Fig 2 Fig 3 DCSFMS DCSFMS DCSFMS DCB DCB DCB KWW KWW KWW D3 D2 D2 D1 D1 D1 H DC DC DC Body (Shell Type)  Dimensions (mm) Cat. No. Dia. Boss Height Bore Dia. Keyway Width Keyway Depth Mounting Depth BoltDCDCSFMSLFDCBKWWKDPCBDPD1BoltD2 BoltD3 Numberof Teeth Weight(kg) Fig WEZ 11040RS04 ● 40 33 40 16 8.4 5.6 18 14 9 Q 4 0.21 1 WEZ 11040RS06 ● 40 33 40 16 8.4 5.6 18 14 9 Q 6 0.20 1 WEZ 11050RS05 ● 50 41 40 22 10.4 6.3 20 18 11 Q 5 0.32 1 WEZ 11050RS07 ● 50 41 40 22 10.4 6.3 20 18 11 Q 7 0.31 1 WEZ 11063RS06 ● 63 50 40 22 10.4 6.3 20 18 11 Q 6 0.58 1 WEZ 11063RS08 ● 63 50 40 22 10.4 6.3 20 18 11 Q 8 0.57 1 WEZ 11080RS07 ● ＊80 55 50 27 12.4 7 22 20 14 Q 7 1.08 1 WEZ 11080RS10 ● ＊80 55 50 27 12.4 7 22 20 14 Q 10 1.07 1 WEZ 11100RS09 ● 100 70 50 32 14.4 8 32 46 Q Q 9 1.57 3 11100RS12 ● 100 70 50 32 14.4 8 32 46 Q Q 12 1.56 3 WEZ 11080R07 ● ＊80 55 50 25.4 9.5 6 25 20 14 Q 7 1.09 1 WEZ 11080R10 ● ＊80 55 50 25.4 9.5 6 25 20 14 Q 10 1.08 1 WEZ 11100R09 ● ＊100 70 63 31.75 12.7 8 32 46 27 18 9 2.12 2 WEZ 11100R12 ● ＊100 70 63 31.75 12.7 8 32 46 27 18 12 2.10 2 Inserts are sold separately. Check the collet mounting size (DCB) when selecting the cutter. For securing the ø80mm and ø100mm cutters to the arbors marked with *, use a JIS B1176 hexagonal socket bolt (ø80: M12 x 30 to 35mm, ø100: M16 x 40 to 45mm). Identification Code WEZ 11 050 R S 07 Cutter Series Insert Cutter Dia. Feed Metric Number Size Direction Bore of Teeth Parts Flat Screw Integrated Anti-seizureWrenchCream Applicable Cutter Nm WEZ11040RS04 WEZ11040RS06 WEZ11050RS05 WEZ11050RS07 WEZ11063RS06 WEZ11063RS08 WEZ11080RS07WEZ11080RS10 BFTX0306IP 1.5 TRDR08IP SUMI-P WEZ11100RS09 WEZ11100RS12 WEZ11080R07 WEZ11080R10 WEZ11100R09 WEZ11100R12 H58 N m Recommended Tightening Torque (N·m) ● mark: Standard stocked item (new product/expanded item)
