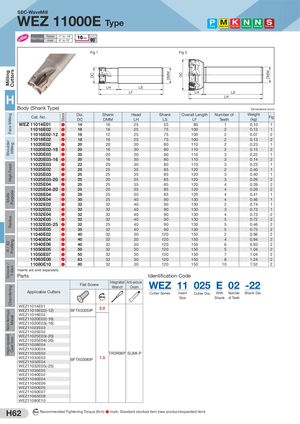

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron Stock DC DMM DC DMM SEC-WaveMill WEZ 11000E Type Steel Stainless Steel Cast Iron Non-Ferrous Metal Aluminum Alloy Exotic Alloy Radial -7° to -18° Rake Angle Axial 6° to 15° Fig 1 Fig 2 LH LS LF LH LS H LH Body (Shank Type)  Dimensions (mm) Cat. No. Dia.DC Shank HeadDMMLH Shank Overall Length Number ofLSLF Teeth Weight(kg) Fig WEZ 11014E01 ● 14 16 25 55 80 1 0.10 1 WEZ 11016E02 ● 16 16 25 75 100 2 0.13 1 WEZ 11016E02-12 ● 16 12 25 75 100 2 0.07 2 WEZ 11018E02 ● 18 16 25 75 100 2 0.13 2 WEZ 11020E02 ● 20 20 30 80 110 2 0.23 1 WEZ 11020E02-16 ● 20 16 30 80 110 2 0.15 2 WEZ 11020E03 ● 20 20 30 80 110 3 0.22 1 WEZ 11020E03-16 ● 20 16 30 80 110 3 0.14 2 WEZ 11022E03 ● 22 20 30 80 110 3 0.23 1 WEZ 11025E02 ● 25 25 35 85 120 2 0.40 1 WEZ 11025E03 ● 25 25 35 85 120 3 0.40 1 WEZ 11025E03-20 ● 25 20 35 85 120 3 0.26 2 WEZ 11025E04 ● 25 25 35 85 120 4 0.39 2 WEZ 11025E04-20 ● 25 20 35 85 120 4 0.26 2 WEZ 11028E04 ● 28 25 35 85 120 4 0.41 1 WEZ 11030E04 ● 30 25 40 90 130 4 0.46 1 WEZ 11032E02 ● 32 32 40 90 130 2 0.74 1 WEZ 11032E03 ● 32 32 40 90 130 3 0.73 1 WEZ 11032E04 ● 32 32 40 90 130 4 0.73 2 WEZ 11032E05 ● 32 32 40 90 130 5 0.72 2 WEZ 11032E05-25 ● 32 25 40 90 130 5 0.46 2 WEZ 11035E05 ● 35 32 40 90 130 5 0.75 2 WEZ 11040E02 ● 40 32 30 120 150 2 0.96 2 WEZ 11040E04 ● 40 32 30 120 150 4 0.94 2 WEZ 11040E06 ● 40 32 30 120 150 6 0.93 2 WEZ 11050E05 ● 50 32 30 120 150 5 1.04 2 WEZ 11050E07 ● 50 32 30 120 150 7 1.04 2 WEZ 11063E08 ● 63 32 30 120 150 8 1.24 2 WEZ 11080E10 ● 80 32 30 120 150 10 1.52 2 Inserts are sold separately. Parts Identification Code Flat Screw Integrated Anti-seizureWrenchCreamWEZ 11 025 E 02 -22 Applicable Cutters Cutter Series Insert Cutter Dia. With Number Shank Dia. Nm Size Shank of Teeth WEZ11014E01WEZ11016E02(-12) BFTX0305IP 2.0 WEZ11018E02 WEZ11020E02(-16) WEZ11020E03(-16) WEZ11022E03 WEZ11025E02 WEZ11025E03(-20) WEZ11025E04(-20) WEZ11028E04 WEZ11030E04 WEZ11032E02 TRDR08IP SUMI-P WEZ11032E03WEZ11032E04 BFTX0306IP 1.5 WEZ11032E05(-25) WEZ11035E05 WEZ11040E02 WEZ11040E04 WEZ11040E06 WEZ11050E05 WEZ11050E07 WEZ11063E08 WEZ11080E10 H62 N m Recommended Tightening Torque (N·m) ● mark: Standard stocked item (new product/expanded item)
