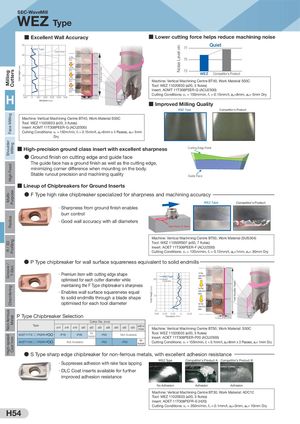

Общий каталог Sumitomo 2019 - 2020 - страница 498

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron Wall Height (mm) Total Shoulder Height Wall Height (mm) Noise Level (dB) Total Shoulder Height SEC-WaveMill WEZ Type ■ Excellent Wall Accuracy ■ Lower cutting force helps reduce machining noise 25 Quiet WEZ Type 77 Competitor's Product 24mm 20 1st Step Depth of Cut(6mm) 75 18mm 15 2nd Step Depth of Cut (6mm) 73 10 12mm WEZ Competitor's Product 3rd Step Depth of Cut(6mm) Machine: Vertical Machining Centre BT40, Work Material S50C 5 6mm Tool: WEZ 11020E03 (ø20, 3 flutes) 4th StepDepth of Cut Insert: AOMT 11T308PEER-G (ACU2500) (6mm) H 0-0.01 0 0.01 0.02 0.03 0.04 0.05Deviation (mm) 0mmCutting width 5mm apae Cutting Conditions: vc = 150m/min, fz = 0.15mm/t, ap=8mm, ae= 5mm Dry■ Improved Milling Quality WEZ Type Competitor's Product Machine: Vertical Machining Centre BT40, Work Material S50C Tool: WEZ 11020E03 (ø20, 3 flutes) Insert: AOMT 11T308PEER-G (ACU2500) Cutting Conditions: v c = 150m/min, fz = 0.15mm/t, ap=6mm x 4 Passes, ae= 5mm Dry ■ High-precision ground class insert with excellent sharpness Cutting Edge Flank ● Ground finish on cutting edge and guide face The guide face has a ground finish as well as the cutting edge, minimizing corner difference when mounting on the body. Stable runout precision and machining quality Guide Face ■ Lineup of Chipbreakers for Ground Inserts ● F Type high rake chipbreaker specialized for sharpness and machining accuracy WEZ Type Competitor's Product · Sharpness from ground finish enables burr control · Good wall accuracy with all diameters Area Prone To Burrs Approx. 2mm Machine: Vertical Machining Centre BT50, Work Material (SUS304) Tool: WEZ 11050RS07 (ø50, 7 flutes) Insert: AOET 11T308PEER-F (ACU2500) Cutting Conditions: vc = 120m/min, fz = 0.12mm/t, ap=1mm, ae= 30mm Dry ● P Type chipbreaker for wall surface squareness equivalent to solid endmills 24mm · Premium item with cutting edge shape 1st TimeWEZ TypeDepth of Cut optimised for each cutter diameter while 20 SolidEndmills (8mm) maintaining the F Type chipbreaker's sharpness 16mm 2nd Time · Enables wall surface squareness equal Depth of Cut(8mm) to solid endmills through a blade shape 10 8mm optimised for each tool diameter 3rd Time Depth of Cut (8mm)0 ap P Type Chipbreaker Selection 0.06 0.04 0.02 0 -0.02 00mmmmDeviation (mm)Cutting width 1mm ae Cutter Dia. (mm) Type ø14 ø16 ø18 ø20 ø22 ø25 ø28 ø30 ø32 ø35 ø40 ormore Machine: Vertical Machining Centre BT50, Work Material: S50C AOET11T3○○PEER-P○○ -P16 -P20 NotAvailable -P25 Not Available Tool: WEZ 11020E03 (ø20, 3 flutes)Insert: AOET 11T308PEER-P20 (ACU2500) AOET1705○○PEER-P○○ Not Available -P25 -P32 NotAvailableCutting Conditions: vc = 150m/min, fz = 0.1mm/t, ap=8mm x 3 Passes, ae= 1mm Dry ● S Type sharp edge chipbreaker for non-ferrous metals, with excellent adhesion resistance WEZ Type Competitor's Product A Competitor's Product B · Suppresses adhesion with rake face lapping · DLC Coat inserts available for further improved adhesion resistance No Adhesion Adhesion Adhesion Machine: Vertical Machining Centre BT30, Work Material: ADC12 Tool: WEZ 11020E03 (ø20, 3 flutes) Insert: AOET 11T308PEFR-S (H20) Cutting Conditions: vc = 350m/min, fz = 0.1mm/t, ap=3mm, ae= 10mm Dry H54
