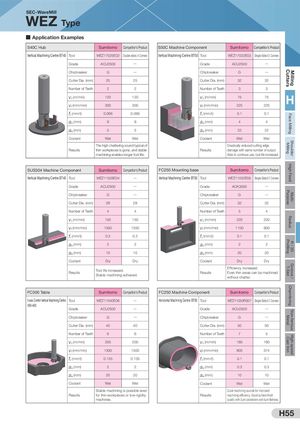

High-speedCast IronNon-ferrousMetalChamferingGroove /T-SlotR / 3DProfilingRadiusMulti-PurposeHigh FeedShoulderMillingFace MillingMillingCutters SEC-WaveMill WEZ Type ■ Application Examples S40C Hub Sumitomo Competitor's Product S50C Machine Component Sumitomo Competitor's Product Vertical Machining Centre BT40 Tool WEZ17025E02 Double-sided, 4 Corners Vertical Machining Centre BT50 Tool WEZ17032E03 Single-Sided 2 Corners Grade ACU2500 Q Grade ACU2500 Q Chipbreaker G Q Chipbreaker G Q Cutter Dia. (mm) 25 25 Cutter Dia. (mm) 32 32 Number of Teeth 2 2 Number of Teeth 3 3 vc (m/min) 120 120 vc (m/min) 75 75 H vf (mm/min) 300 300 vf (mm/min) 225 225 fz (mm/t) 0.066 0.066 fz (mm/t) 0.1 0.1 ap (mm) 9 9 ap (mm) 4 4 ae (mm) 5 5 ae (mm) 22 22 Coolant Wet Wet Coolant Wet Wet The high chattering sound typical of Drastically reduced cutting edge Results thin workpieces is gone, and stable Results damage with same number of output machining enables longer tool life. Able to continue use, tool life increased. SUS304 Machine Component Sumitomo Competitor's Product FC250 Mounting base Sumitomo Competitor's Product Vertical Machining Centre BT40 Tool WEZ11028E04 Q Vertical Machining Centre BT50 Tool WEZ11032E05 Single-Sided 2 Corners Grade ACU2500 Q Grade ACK3000 Q Chipbreaker G Q Chipbreaker G Q Cutter Dia. (mm) 28 28 Cutter Dia. (mm) 32 32 Number of Teeth 4 4 Number of Teeth 5 4 vc (m/min) 150 150 vc (m/min) 220 220 vf (mm/min) 1350 1350 vf (mm/min) 1100 900 fz (mm/t) 0.2 0.2 fz (mm/t) 0.1 0.1 ap (mm) 2 2 ap (mm) 2 2 ae (mm) 10 10 ae (mm) 20 20 Coolant Dry Dry Coolant Dry Dry Results Tool life increased.Stable machining achieved. Efficiency increased.ResultsEven thin areas can be machinedwithout chatter. FC300 Table Sumitomo Competitor's Product FC250 Machine Component Sumitomo Competitor's Product 5-axis Control Vertical Machining Centre Tool WEZ11040E06 Q Horizontal Machining Centre: BT50 Tool WEZ11050RS07 Single-Sided 2 Corners HSK-A63 Grade ACU2500 Q Grade ACU2500 Q Chipbreaker G Q Chipbreaker G Q Cutter Dia. (mm) 40 40 Cutter Dia. (mm) 50 50 Number of Teeth 6 6 Number of Teeth 7 5 vc (m/min) 200 200 vc (m/min) 180 180 vf (mm/min) 1300 1300 vf (mm/min) 805 574 fz (mm/t) 0.135 0.135 fz (mm/t) 0.1 0.1 ap (mm) 2 2 ap (mm) 0.3 0.3 ae (mm) 20 20 ae (mm) 10 10 Coolant Wet Wet Coolant Wet Wet Stable machining is possible even Quiet machining sounds for improved Results for thin workpieces or low-rigidity Results machining efficiency. Good surface finish machines. quality with 3μm parallelism and 4μm flatness. H55
