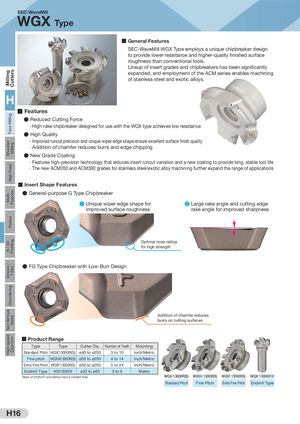

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron SEC-WaveMill WGX Type ■ General Features SEC-WaveMill WGX Type employs a unique chipbreaker design to provide lower resistance and higher-quality finished surface roughness than conventional tools. Lineup of insert grades and chipbreakers has been significantly expanded, and employment of the ACM series enables machining of stainless steel and exotic alloys. H ■ Features ● Reduced Cutting Force · High-rake chipbreaker designed for use with the WGX type achieves low resistance ● High Quality · Improved runout precision and unique wiper edge shape ensure excellent surface finish quality · Addition of chamfer reduces burrs and edge chipping ● New Grade Coating · Features high-precision technology that reduces insert runout variation and a new coating to provide long, stable tool life · The new ACM200 and ACM300 grades for stainless steel/exotic alloy machining further expand the range of applications ■ Insert Shape Features ● General-purpose G Type Chipbreaker ❶ Unique wiper edge shape for ❷ Large rake angle and cutting edge improved surface roughness rake angle for improved sharpness 21 Optimal nose radiusfor high strength ● FG Type Chipbreaker with Low-Burr Design Addition of chamfer reduces burrs on cutting surfaces ■ Product Range Type Type Cutter Dia. Number of Teeth Mounting Standard Pitch WGX13000R(S) ø40 to ø250 3 to 10 Inch/Metric Fine pitch WGXM13000R(S) ø50 to ø250 4 to 14 Inch/Metric Extra Fine Pitch WGXF13000R(S) ø50 to ø250 5 to 24 Inch/Metric Endmill Type WGX13000EW ø32 to ø63 3 to 5 Metric Sizes of ø125mm and below have a coolant hole WGX 13000R(S) WGXM 13000R(S) WGXF 13000R(S) WGX 13000EW Standard Pitch Fine Pitch Extra Fine Pitch Endmill Type H16
