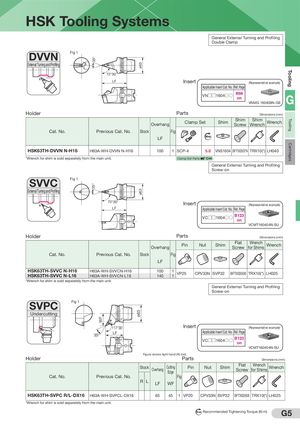

35°35° WF ø63ø63ø63 CartridgesToolingTooling HSK Tooling Systems General External Turning and Profiling Double Clamp DVVN Fig 1 External Turning and Profiling 72°30' LF Insert (Representative example) Applicable Insert Cat. No. Ref. Page VN□□1604○○ B66on VNMG 160408N-GE G Holder  Parts Dimensions (mm) Overhang Clamp Set Shim ShimScrew ShimWrenchWrench Cat. No. Previous Cat. No. Stock Fig LF Nm HSK63TH-DVVN N-H16 H63A-WH-DVVN N-H16 100 1 SCP-4 5.0 VNS1604 BFTX0307N TRX10(*) LH040 *Wrench for shim is sold separately from the main unit. Clamp Set Parts C44 General External Turning and Profiling Screw-on SVVC Fig 1 External Turning and Profiling 72°30' Insert (Representative example) LF Applicable Insert Cat. No. Ref. Page VC□□1604○○ B123 on VCMT160404N-SU Holder  Parts Dimensions (mm) Overhang Pin Nut Shim FlatScrew Wrenchfor ShimsWrench Cat. No. Previous Cat. No. Stock Fig LF HSK63TH-SVVC N-H16 H63A-WH-SVVCN-H16HSK63TH-SVVC N-L16H63A-WH-SVVCN-L1610014011VP25 CPV33N SVP32 BFTX03508 TRX10(*) LH025 *Wrench for shim is sold separately from the main unit. General External Turning and Profiling Screw-on SVPC Fig 1 Undercutting 117°30' Insert (Representative example) 35° LF Applicable Insert Cat. No. Ref. Page VC□□1604○○ B123 on VCMT160404N-SU Figure shows right hand (R) tool. Holder Parts  Dimensions (mm) Stock Overhang CuttingEdge Pin Nut Shim FlatScrew Wrench for Shims Wrench Cat. No. Previous Cat. No. Fig R L LF WF HSK63TH-SVPC R/L-DX16 H63A-WH-SVPCL-DX16 65 45 1 VP20 CPV33N SVP32 BFTX03508 TRX10(*) LH025 *Wrench for shim is sold separately from the main unit. N m Recommended Tightening Torque (N·m) G5
