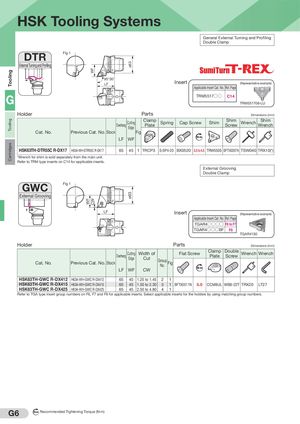

ToolingToolingCartridges WF WFCW ø63ø63 HSK Tooling Systems General External Turning and Profiling Double Clamp DTR Fig 1 External Turning and Profiling 95°30' LF Insert (Representative example) Applicable Insert Cat. No. Ref. Page G TRM5517○○ C14 TRM551708-LU Holder  Parts Dimensions (mm) Overhang Cutting Edge ClampPlateSpring Cap Screw Shim ShimScrew Wrench ShimWrench Cat. No. Previous Cat. No. Stock Fig LF WF Nm HSK63TH-DTR55C R-DX17 H63A-WH-DTR55C R-DX17 65 45 1 TRCP3 S-SP4-20 BX0520 3.5 to 4.5 TRW5505 BFTX0307N TSW040 TRX10(*) *Wrench for shim is sold separately from the main unit. Refer to TRM type inserts on C14 for applicable inserts. External Grooving Double Clamp GWC Fig 1 External Grooving LF Insert (Representative example) Applicable Insert Cat. No. Ref. Page TGAR4○○○□ F6 to F7 TGAR4○○○BF F8 TGAR4150 Holder  Parts Dimensions (mm) Cat. No. Overhang Cutting EdgePrevious Cat. No. StockWidth ofCutGroup No. FigFlat ScrewClampPlateDoubleScrewWrench Wrench LF WF CW Nm HSK63TH-GWC R-DX412 H63A-WH-GWC R-DX412 65 45 1.25 to 1.45 2 1 HSK63TH-GWC R-DX415 H63A-WH-GWC R-DX415 65 45 1.50 to 2.30 3 1 BFTX0511N 5.0 CCM8UL WB8-22T TRX20 LT27 HSK63TH-GWC R-DX425 H63A-WH-GWC R-DX425 65 45 2.50 to 4.80 4 1 Refer to TGA type insert group numbers on F6, F7 and F8 for applicable inserts. Select applicable inserts for the holders by using matching group numbers. G6 N m Recommended Tightening Torque (N·m)
