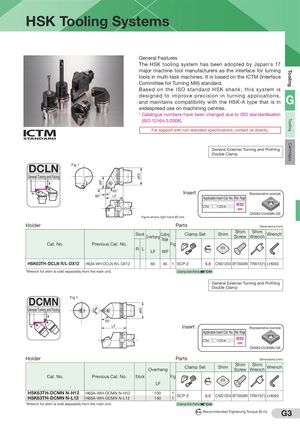

CartridgesToolingTooling 80° WF ø63ø63 HSK Tooling Systems General Features The HSK tooling system has been adopted by Japan's 17 major machine tool manufacturers as the interface for turning tools in multi-task machines. It is based on the ICTM (Interface Committee for Turning Mill) standard. Based on the ISO standard HSK shank, this system is designed to improve precision in turning applications,and maintains compatibility with the HSK-A type that is inG widespread use on machining centres. * Catalogue numbers have been changed due to ISO standardisation (ISO 12164-3:2008). For support with non-standard specifications, contact us directly. General External Turning and Profiling Double Clamp DCLN Fig 1 General Turning and Facing 95°80°LF Insert (Representative example)Applicable Insert Cat. No. Ref. Page CN□□1204○○ B22on CNMG120408N-GE Figure shows right hand (R) tool. Holder Parts Dimensions (mm) Stock Overhang Cutting Edge Clamp Set Shim ShimScrew ShimWrenchWrench Cat. No. Previous Cat. No. Fig R L LF WF Nm HSK63TH-DCLN R/L-DX12 H63A-WH-DCLN R/L-DX12 65 45 1 SCP-2 5.0 CNS1204 BFTX0409N TRX15(*) LH040 *Wrench for shim is sold separately from the main unit. Clamp Set Parts C44 General External Turning and Profiling Double Clamp DCMN Fig 1 General Turning and Facing 50° LF Insert (Representative example) Applicable Insert Cat. No. Ref. Page CN□□1204○○ B22on CNMG120408N-GE Holder Parts Dimensions (mm) Overhang Clamp Set Shim ShimScrew ShimWrenchWrench Cat. No. Previous Cat. No. Stock Fig LF Nm HSK63TH-DCMN N-H12 H63A-WH-DCMN N-H12HSK63TH-DCMN N-L12H63A-WH-DCMN N-L1210014011SCP-2 5.0 CNS1204 BFTX0409N TRX15(*) LH040 *Wrench for shim is sold separately from the main unit. Clamp Set Parts C44 N m Recommended Tightening Torque (N·m) G3
