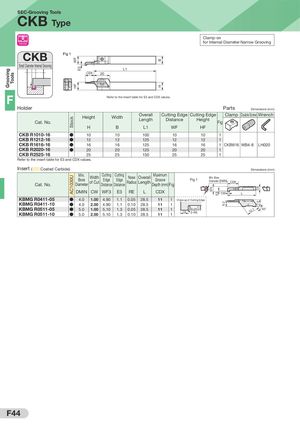

Общий каталог Sumitomo 2019 - 2020 - страница 358

SEC-Grooving Tools
CKB Type
Clamp-on
Internal for Internal Diameter Narrow Grooving

CKB
Fig 1


WF


B
Small Diameter Internal Grooving
E3
L1
Grooving


CDX 20
Tools


HF


H
F Holder
Refer to the insert table for E3 and CDX values.

Parts Dimensions (mm)
Overall Cutting Edge Cutting Edge Clamp Double Screw Wrench
Height Width
Stock


Length Distance Height
Cat. No. Fig
H B L1 WF HF
CKB R1010-16 ● 10 10 100 10 10 1
CKB R1212-16 ● 12 12 125 12 12 1
CKB R1616-16 ● 16 16 125 16 16 1 CKBW16 WB4-8 LH020
CKB R2020-16 ● 20 20 125 20 20 1
CKB R2525-16 25 25 150 25 25 1
Refer to the insert table for E3 and CDX values.
Insert ( Coated Carbide) Dimensions (mm)
Min. Width Cutting Cutting Nose Overall Maximum
AC1030U


Min. Bore
Bore Edge Edge Groove Fig 1 Diameter (DMIN) CDX
Cat. No. Diameter of Cut Distance Distance Radius Length Depth (mm) Fig


WF3


3.8
DMIN CW WF3 E3 RE L CDX CW L


E3
KBMG R0411-05 ● 4.0 1.00 4.90 1.1 0.05 28.5 11 1 Close-up of Cutting Edge


7.0
KBMG R0411-10 ●

6.2
4.0 2.00 4.90 1.1 0.10 28.5 11 1
●
E1

KBMG R0511-05 5.0 1.00 5.10 1.3 0.05 28.5 11 1 R0.25
12
.7 55°
CW 2-RE
KBMG R0511-10 ● 5.0 2.00 5.10 1.3 0.10 28.5 11 1


F44
