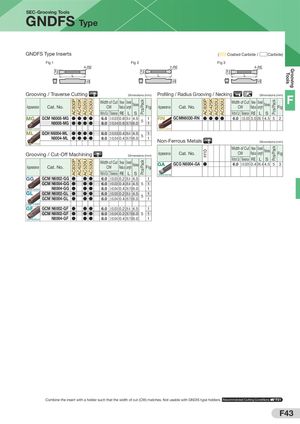

Общий каталог Sumitomo 2019 - 2020 - страница 357

SEC-Grooving Tools
GNDFS Type
GNDFS Type Inserts  ( Coated Carbide / Carbide)
Fig 1 Fig 2 Fig 3
4-RE 2-RE 4-RE


Grooving
CW


CW


CW


Tools
L L L


S


S
S
Grooving / Traverse Cutting  Profiling / Radius Grooving / Necking
F
Dimensions (mm) Dimensions (mm)
AC520U
AC530U


AC520U
AC530U
AC425K


AC425K
AC830P


AC830P
Width of Cut Nose Overall Width of Cut Nose Overall


Pcs/Pack


Pcs/Pack
Thickness Thickness
Appearance Cat. No. CW Radius Length Fig Appearance Cat. No. CW Radius Length Fig
Width of Cut Tolerance RE L S Width of Cut Tolerance RE L S
MG GCM N6008-MG ● ● ● ● 6.0 ±0.03 0.8 26.4 4.5 1 RN GCMN6030-RN ● ● ● ● 6.0 ±0.03 3.0 28.1 4.5 5 2
5
GCM N8008-MG ● ● ● ● 8.0 ±0.04 0.8 28.75 6.0 1
General-purpose General-purpose
ML GCH N6004-ML ● ● ● ● 6.0 ±0.03 0.4 26.4 4.5 1
5
N8004-ML ● ● ● ● 8.0 ±0.04 0.4 28.75 6.0 1
Low Feed
Non-Ferrous Metals  Dimensions (mm)
Width of Cut Nose Overall


Pcs/Pack
Thickness


H10
Grooving / Cut-Off Machining  Dimensions (mm)
Appearance Cat. No. CW Radius Length Fig
Width of Cut Tolerance RE L S
AC520U
AC530U
AC425K
AC830P


Width of Cut Nose Overall
Pcs/Pack


Thickness GA GCG N6004-GA ● 6.0 ±0.025 0.4 26.4 4.5 5 3
Appearance Cat. No. CW Radius Length Fig
Width of Cut Tolerance RE L S General-purpose
GG GCM N6002-GG ● ● ● 6.0 ±0.03 0.2 26.4 4.5 1
GCM N6004-GG ● ● ● 6.0 ±0.03 0.4 26.4 4.5 5 1
General-purpose GCM N8004-GG ● ● ● 8.0 ±0.04 0.4 28.75 6.0 1
GL GCM N6002-GL ● ● ● 6.0 ±0.03 0.2 26.4 4.5 1
5
GCM N8004-GL ● ● ● 8.0 ±0.04 0.4 28.75 6.0 1
Low Feed
GF GCM N6002-GF ● ● ● 6.0 ±0.03 0.2 26.4 4.5 1
GCM N8002-GF ● ● ● 8.0 ±0.04 0.2 28.75 6.0 5 1
Low Resistance N8004-GF ● ● ● 8.0 ±0.04 0.4 28.75 6.0 1


Combine the insert with a holder such that the width of cut (CW) matches. Not usable with GNDIS type holders. Recommended Cutting Conditions F21
