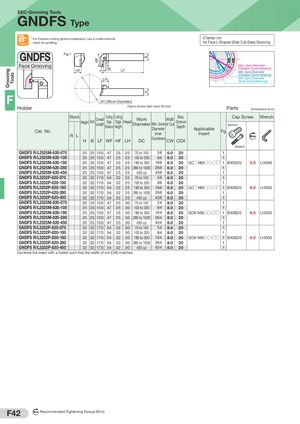

Общий каталог Sumitomo 2019 - 2020 - страница 356
Навигация
Каталог Sumitomo запасные части
Каталог Sumitomo сплавы и режимы
Техническая информация Sumitomo
Каталог Sumitomo пластины с алмазными вставками Sumidia
Каталог Sumitomo специальные торцевые фрезы
Общий каталог Sumitomo 2018 - 2019
GNDFS SEC-Grooving Tools
Clamp-on * For traverse cutting (groove expansion), use a multifunctional insert for profiling. for Face L-Shaped (Side Cut) Deep Grooving Facing
GNDFS
Fig 1 Face Grooving Max. bore Diameter CW (Outside Circumference) HF LF Min. bore Diameter (Outside Circumference) LH Min. bore Diameter (Inner Circumference)
F
DC (Work Diameter)
Holder Figure shows right hand (R) tool. Parts
Dimensions (mm)
Stock Cutting Cutting Max. Cap Screw Wrench
Overall Width
Height Width Edge Edge Head Work Groove
Length Diameter Min. bore of Cut
Distance Height Depth BX0520
Diameter Applicable Cat. No. Fig Inner Insert R L N m Circumference
H B LF WF HF LH DC CW CDX
BX0620
| GNDFS R/L2525M-620-070 | 25 25 150 47 25 25 | 70 to 100 | 58 | 6.0 | 20 | 1 | ||||
| GNDFS R/L2525M-620-100 | 25 25 150 47 25 25 100 to 200 | 88 | 6.0 | 20 | 1 | |||||
| GNDFS R/L2525M-620-180 | 25 25 150 47 25 25 180 to 300 | 168 | 6.0 | 20 | GC□ N60○○-□□ | 1 | BX0520 | 5.0 | LH040 | |
| GNDFS R/L2525M-620-280 | 25 25 150 47 25 25 280 to 1000 | 268 | 6.0 | 20 | 1 | |||||
| GNDFS R/L2525M-620-450 | 25 25 150 47 25 25 | 450 up | 438 | 6.0 | 20 | 1 | ||||
| GNDFS R/L3232P-620-070 | 32 32 170 54 32 25 | 70 to 100 | 58 | 6.0 | 20 | 1 | ||||
| GNDFS R/L3232P-620-100 | 32 32 170 54 32 25 100 to 200 | 88 | 6.0 | 20 | 1 | |||||
| GNDFS R/L3232P-620-180 | 32 32 170 54 32 25 180 to 300 | 168 | 6.0 | 20 | GC□ N60○○-□□ | 1 | BX0620 | 6.0 | LH050 | |
| GNDFS R/L3232P-620-280 | 32 32 170 54 32 25 280 to 1000 | 268 | 6.0 | 20 | 1 | |||||
| GNDFS R/L3232P-620-450 | 32 32 170 54 32 25 | 450 up | 438 | 6.0 | 20 | 1 | ||||
| GNDFS R/L2525M-820-070 | 25 25 150 47 25 30 | 70 to 100 | 54 | 8.0 | 20 | 1 | ||||
| GNDFS R/L2525M-820-100 | 25 25 150 47 25 30 100 to 200 | 84 | 8.0 | 20 | 1 | |||||
| GNDFS R/L2525M-820-180 | 25 25 150 47 25 30 180 to 300 | 164 | 8.0 | 20 | GCM N80○○-□□ | 1 | BX0620 | 6.0 | LH050 | |
| GNDFS R/L2525M-820-280 | 25 25 150 47 25 30 280 to 1000 | 264 | 8.0 | 20 | 1 | |||||
| GNDFS R/L2525M-820-450 | 25 25 150 47 25 30 | 450 up | 434 | 8.0 | 20 | 1 | ||||
| GNDFS R/L3232P-820-070 | 32 32 170 54 32 30 | 70 to 100 | 54 | 8.0 | 20 | 1 | ||||
| GNDFS R/L3232P-820-100 | 32 32 170 54 32 30 100 to 200 | 84 | 8.0 | 20 | 1 | |||||
| GNDFS R/L3232P-820-180 | 32 32 170 54 32 30 180 to 300 | 164 | 8.0 | 20 | GCM N80○○-□□ | 1 | BX0620 | 6.0 | LH050 | |
| GNDFS R/L3232P-820-280 | 32 32 170 54 32 30 280 to 1000 | 264 | 8.0 | 20 | 1 | |||||
| GNDFS R/L3232P-820-450 | 32 32 170 54 32 30 | 450 up | 434 | 8.0 | 20 | 1 |
Combine the insert with a holder such that the width of cut (CW) matches.
