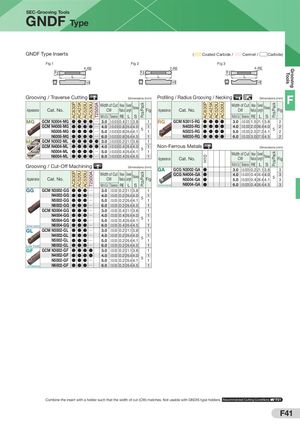

Общий каталог Sumitomo 2019 - 2020 - страница 355

SEC-Grooving Tools
GNDF Type
GNDF Type Inserts  ( Coated Carbide / Cermet / Carbide)
Fig 1 Fig 2 Fig 3
4-RE 2-RE 4-RE


Grooving
CW


CW


CW


Tools
L L L


S


S
S
Grooving / Traverse Cutting  Dimensions (mm) Profiling / Radius Grooving / Necking  Dimensions (mm)
F
AC520U
AC530U


AC520U
AC530U
AC425K


AC425K
AC830P


AC830P
T2500A
Width of Cut Nose Overall Width of Cut Nose Overall


Pcs/Pack


Pcs/Pack
Thickness Thickness
Appearance Cat. No. CW Radius Length Fig Appearance Cat. No. CW Radius Length Fig
Width of Cut Tolerance RE L S Width of Cut Tolerance RE L S
MG GCM N3004-MG ● ● ● ● Q 3.0 ±0.03 0.4 21.1 3.8 1 RG GCM N3015-RG ● ● ● ● 3.0 ±0.03 1.5 21.1 3.8 2
GCM N4008-MG ● ● ● ● Q 4.0 ±0.03 0.8 26.4 4.0 1 GCM N4020-RG ● ● ● ● 4.0 ±0.03 2.0 26.4 4.0 2
5 5
N5008-MG ● ● ● ● Q 5.0 ±0.03 0.8 26.4 4.1 1 N5025-RG ● ● ● ● 5.0 ±0.03 2.5 27.2 4.1 2
General-purpose N6008-MG ● ● ● ● Q 6.0 ±0.03 0.8 26.4 4.5 1 General-purpose GCM N6030-RG ● ● ● ● 6.0 ±0.03 3.0 27.5 4.5 2
ML CW = GCM N3002-ML ● ● ● ● ● 3.0 ±0.03 0.2 21.1 3.8 1
up to 4.0mm
GCM N4004-ML ● ● ● ● ● 4.0 ±0.03 0.4 26.4 4.0 1 Non-Ferrous Metals  Dimensions (mm)
CW = GCM N5004-ML ● ● ● ● Q 5.0 ±0.03 0.4 26.4 4.1 5 1
Width of Cut Nose Overall


Pcs/Pack
5.0mm up
N6004-ML ● ● ● ● Q 6.0 ±0.03 0.4 26.4 4.5 1 Thickness


H10
Low Feed
Appearance Cat. No. CW Radius Length Fig
Grooving / Cut-Off Machining  Width of Cut Tolerance RE L S
Dimensions (mm)
GA GCG N3002-GA ● 3.0 ±0.025 0.2 21.1 3.8 3
AC520U
AC530U
AC830P


GCG N4004-GA ● 4.0 ±0.025 0.4 26.4 4.0
T2500A


Width of Cut Nose Overall
Pcs/Pack


3
Thickness 5
Appearance Cat. No. CW Radius Length Fig GCG N5004-GA ● 5.0 ±0.025 0.4 26.4 4.1 3
Width of Cut Tolerance RE L S General-purpose GCG N6004-GA ● 6.0 ±0.025 0.4 26.4 4.5 3
GG GCM N3002-GG ● ● ● Q 3.0 ±0.03 0.2 21.1 3.8 1
N4002-GG ● ● ● Q 4.0 ±0.03 0.2 26.4 4.0 1
5
GCM N5002-GG ● ● ● Q 5.0 ±0.03 0.2 26.4 4.1 1
GCM N6002-GG ● ● ● Q 6.0 ±0.03 0.2 26.4 4.5 1
GCM N3004-GG ● ● ● Q 3.0 ±0.03 0.4 21.1 3.8 1
GCM N4004-GG ● ● ● Q 4.0 ±0.03 0.4 26.4 4.0 1
5
GCM N5004-GG ● ● ● Q 5.0 ±0.03 0.4 26.4 4.1 1
General-purpose GCM N6004-GG ● ● ● Q 6.0 ±0.03 0.4 26.4 4.5 1
GL GCM N3002-GL ● ● ● Q 3.0 ±0.03 0.2 21.1 3.8 1
GCM N4002-GL ● ● ● Q 4.0 ±0.03 0.2 26.4 4.0 1
5
GCM N5002-GL ● ● ● Q 5.0 ±0.03 0.2 26.4 4.1 1
Low Feed GCM N6002-GL ● ● ● Q 6.0 ±0.03 0.2 26.4 4.5 1
GF GCM N3002-GF ● ● ● ● 3.0 ±0.03 0.2 21.1 3.8 1
N4002-GF ● ● ● ● 4.0 ±0.03 0.2 26.4 4.0 1
5
GCM N5002-GF ● ● ● Q 5.0 ±0.03 0.2 26.4 4.1 1
Low Resistance N6002-GF ● ● ● Q 6.0 ±0.03 0.2 26.4 4.5 1


Combine the insert with a holder such that the width of cut (CW) matches. Not usable with GNDIS type holders. Recommended Cutting Conditions F21

F41
